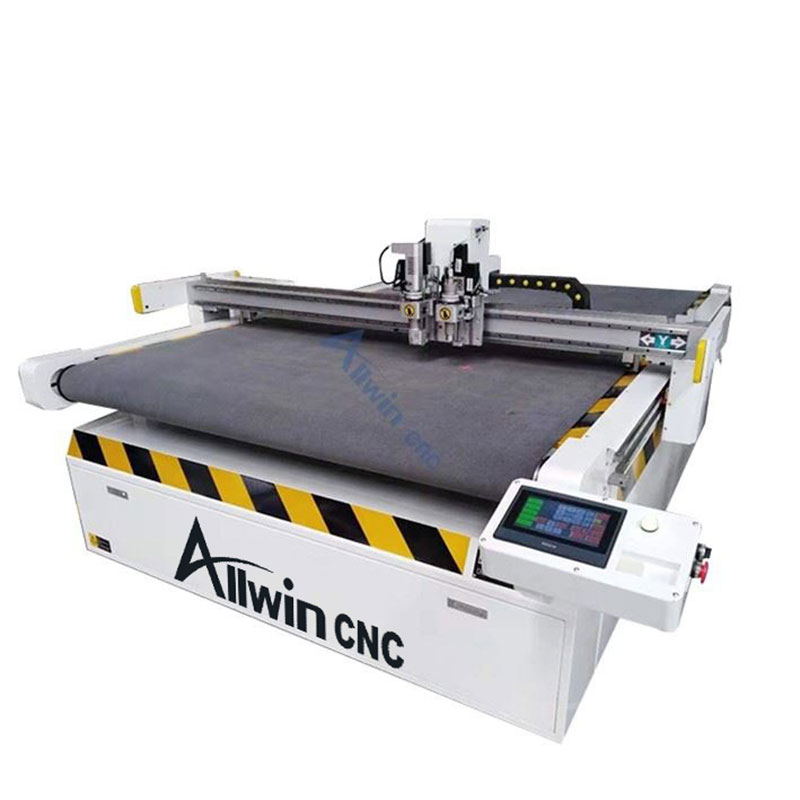

Flatbed Cutting Manufacturer

ALLWIN CNC manufacturing quality digital flatbed cutter plotter machine for cutting thick and hard materials with competitive price and fast delivery. Welcome to contact us for free quote.

Competitive price Digital flatbed cutting machine(as known as CNC cutter plotters) adopts automatic software, which perfectly integrates user needs into software design. It can quickly complete various processes such as full cutting, half cutting, milling, drilling, crease,marking, etc.The operation is simple and convenient, and the functions are rich and practical. With the tool quick change module, it can meet the cus-tomized needs of users.

Affordable Flatbed Cutter Plotters China Supply

what is digital Flatbed Cutting Plotters?

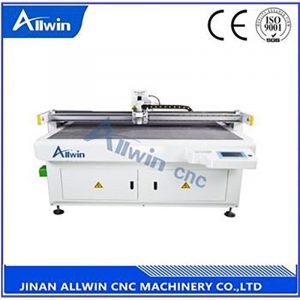

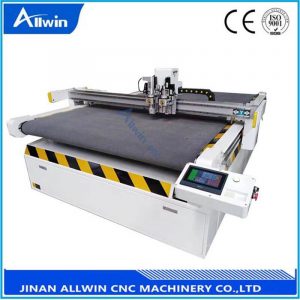

Flatbed Cutting Plottercut Plotter Corrugated Paper Digital Plotter Cutter

A automatic digital cutter is also known as CNC digital cutting machine, CNC digital cutting table, automatic flatbed cutter, automatic flatbed cutting machine, automatic digital knife cutting machine, automatic digital knife cutter, digital plotter, digital cutting plotter, dieless knife cutting machine, dieless knife cutter, CNC die cutter, flash cutting machine, flash cutter, CNC knife cutting system, CNC digital cutting machine, CNC digital cutter, CNC digital cutting system, CNC knife cutter,Flatbed Vinvl cutter,CNC knife cutting machine, oscillating knife cutter, knife cutting machine, knife cutting system, CNC drag knife cutter, CNC tangential knife cutter, CNC oscillating knife cutting machine, CNC knife cutting table,CNC blade cutting table, flatbed cutting table

Digital cnc cutting machine use super professional software to control cnc cutting machine cuts according to cut any shapes following its computer drawing.

No. Model 1625 CUTTING PLOTTER MACHINE
1 X axis working area 2500mm/1300mm/customized size
2 Y Axis working area 1600mm/1300mm/customized size
3 muti-Cutting Mode   oscillating knife/circular knife/V cut/punching tools/milling tools/drag tools/
pneumatic knife/creasing tools/
4  attached  CCD or projector reads printed marks on materials.
5 Controlling system  autamtic touch screen controller
6 sytem of computer WIN7,WIN8,WIN10
7 Driving and motor Y=750W  Delta brand or japan FUJI motor
X=400W  Delta brand or japan fuji motor
 Z=100W Delta brand or japan fuji motor
cutting knife=100W Delta brand or japan fuji motor
9 fixed model flat plate table or japan fuji motor
10 Table  titanium alloys with suction platform
11 max cutting speed  1000mm/S
12 No load speed  800-2500mm/s
13 Cutting accuracy  ±0.1mm
14 Cutting thickness  0-25mm
13 working votlage  220V±10% or 380V±10%
14 Vacumm pump 11.0KW with 3 phrase AC380V
15 Control panel english touch screen
16 cutting extent  full cut .kiss cut,dot cut
16 operation Support offline
17 working area 1600mm*2500mm/1300mm*900mm/customized size
18 X axis transmission   2.0 Square guild rails
18 Y axis transmission  Rack+square guild rails
20 buffer memory  2G
21 tramsmission  Ethernet
22 fix table style  flatbd fixed table or automatic feeding table for option
23 Fire format PLT ,DXF,AI,EPS
24 safety device Using infrared sensors, responsive,
25 table   vaccum absorbing style with 11KW vaccuum pump
26 fixure material  section vaccum table

Digital touch screen control system in english                                      limit sensor and red point safety device(automatic

Multi-axes control system with very easy operaton                         infrared sensor device) giving safety work status          interface and powerful function.

intelligent controller

HIWIN Square guild rails 2.0 and high precision rack                          multi-functional cutting heads for option                      to have stable moves                                                                                according to different  materials.

Digital flatbed cutter with Guild rails
Oscillating knife with V cuts

automatic feedling roller with big size CCD capature tools

QQ截图20230308120436

customized super big size CNC flatbed cutter 3.3m*13m for cutting curtain

super large size flatbed cutting machine for curtain

corner of our workshop to show high quality CNC digtial flatbed cutting machine

002a40ba05fc1bee1942b8bb3e3e6ea

how choose right digital cutting machine?what function of each tools?

1.Multi-functional heads optional(different tools for optional)
Vibration knife (oscillatory knife)、Circular knife (round knife / rotary knife)、Oblique knife (V-cut)、Marking pen、Punching roller (round punching/v-punching/optional)、Milling knife. Drag knife、Penumatic knife、Projector and camera optional.

Oscillating tools(vibration knife):cardboard;paper board and KTV

Rotary tools(circular knife):soft material like fabric material

Non-oscillating tools:kinda of hard material like KT board
V-cuts tools: process thick paper boards and make V-shape grooving.it can be 0/15/22.50/30/45 degree

Creasing tools:allows for perfect creasing on the corrugated materials.follwing the cutting software,the tool could cut corrugated material along its structure or the reverse direction to have a finest creasing.

CCD camera is for reading printed marks on materials and contrast with pattern to realize positionning cutting.

projector: projector to locate big working area than CCD camera..Projector is for un-regular shape materials.

all kings of cutting tools

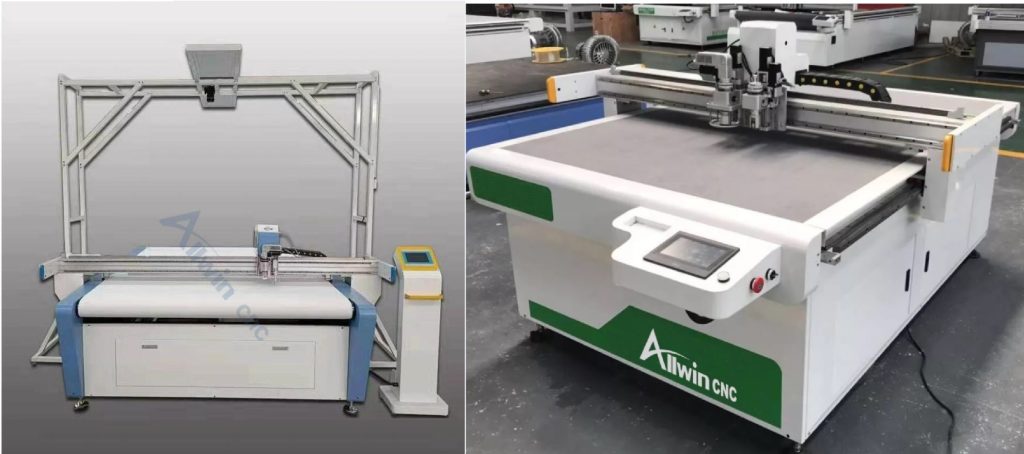

CCD CAMERA AND PROJECTOR

what projects for digital flatbed cutting machine?and what material?

 Application for ALLWIN digital flatbed cutting machine?

printing,package filed.beautiy supplies.customzation;UV transfer stickers,Nail stickers stores and car decroations.

what materials of ALLWIN digital flatbed cutting machine cuts?

Honeycomb paperboard, corrugated paper, plastic corrugated paper, gray board paper, cardboard, stickers, film, fiber composite materials, artificial leather, cloth, PU, rubber sheet, gasket, pearl cotton, fiberboard and various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials,stickers,labels,paper cards,PU leather,PVC,PET,Vinvl, etc.
different tools option for digital cnc cutting machine
