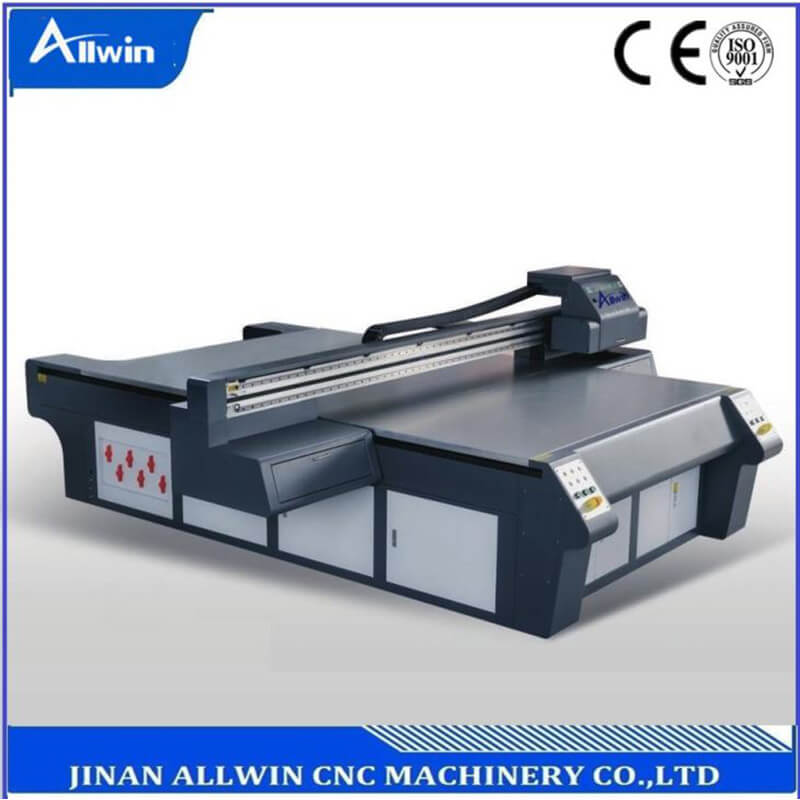

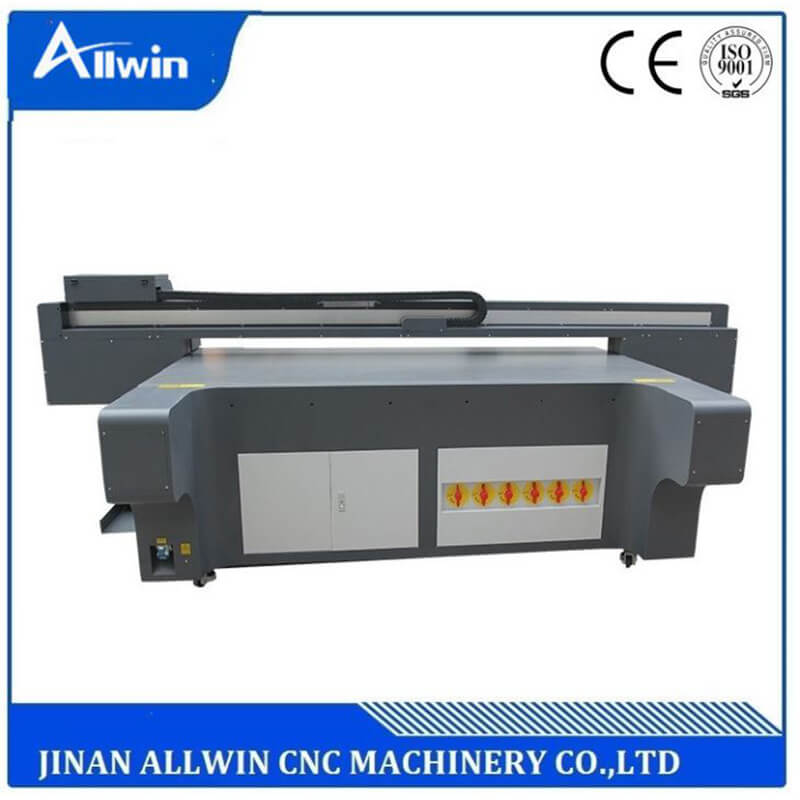

Large format Inkjet UV flatbed printer

This Large format UV Inkjet Printer applies Ricoh G5 metal nozzle print head, which has good strength and excellent corrosion resistance.

Model:large format 1325 industries UV flatbed printer
Category: ink-jet large format flatbed UV printer
PrintheadsRIcoh G5 or Ricoh G6

Magnesium aluminum alloy adsorption platform

inkjet UV ink UV ink  C.M.Y.K.WW,VV(White color and Varnish)
Standard Price:17000$USD / Set
printing on materialplastic,wood,acrylic,glass,ceramic,tile,plate metals,leather,wall board,car mat.
printing speed    draft mode:4 pass 20㎡/h    Normal mode:6Pass:15㎡/h    High precision mode:8㎡/h
Payment Terms: T/T,L/C
PRODUCT DESCRIPTIONS for large format UV printer

This Large format UV Inkjet Printer applies Ricoh G5 metal nozzle print head, which has good strength and excellent corrosion resistance. It features high resolution, gorgeous color, economical and economical printing head. Compared with the common print head, it can achieve 7/24 consistent work and three times the service life. Besides, our Large format UV Inkjet Printer has firm all steel frame structure and stable operation. It can meet the needs of diversified from different fields.


The Large Format UV Inkjet Printer has super quiet dual guide rail, providing low noise, high precision, strong stability, wear resistance, accurate positioning and long service life. It is easy to operate and fully compliant with industrial printing standards. This machine can be used on glass, wood, metal, ceramic tile, tile wall, home decoration painting, glass painting and wallpaper printing, ideal for creating large format outdoor point-of-purchase signage and banners, exhibit displays, architectural and directional signage, event signage and more

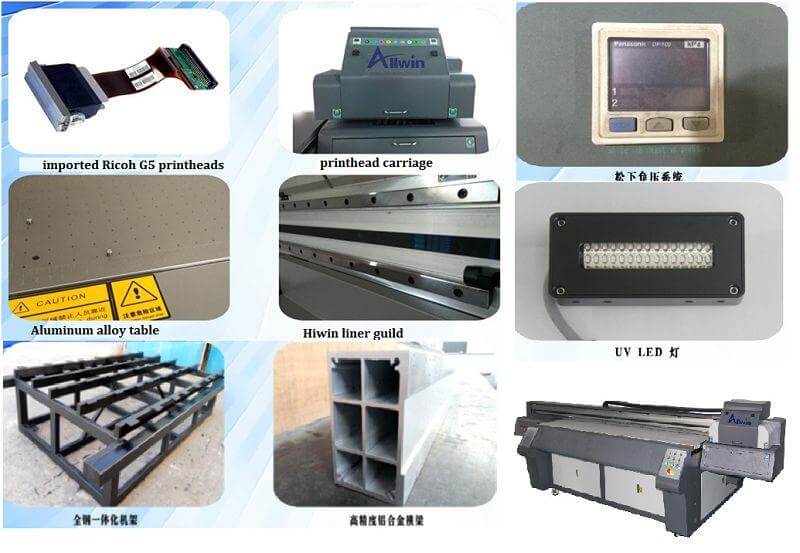

Technical Features

1. 2—8heads (Ricoh Gen5) for optional

2. Ultra-high precision and high speed.

3. Printing material without limit

4. Adsorbing platform, light grid positioning.

5. Flexible multi-color ink configuration, suitable for various industrial production

6. USB3.0 high-speed data output system available for various software.

7. Friendly RIP and excellent ICC profile system ensure vivid and accurate effect.

Product Model 1325 industrial Inkjet UV lfatbed printer
Printing Area 1300mm*2500mm
Printhead Technology Drop-On Demand Piezo Eletric
Printhead Control Printhead Voltage Is Software Adjustable
Printhead Type Ricoh G5
Printhead Number 2,3.4
Ink Characteristics UV Curing Ink
Ink Reservoirs Refillable On The Fly While Printing/1000ml Per Color
Lamp UV LED Lamp
Color Control ICC Based Color, Curves And Density Adjustment
Printhead Arrangement C M Y K LC LM W,Varnish Optional
Cleaning System Positive Pressure Cleaning
Guide Rail Taiwan HIWIN
Working Table 6-Section Vacuum Sucking Table
Technical service flying to oversea workshop to offer service face to face; online service
Media Thickness 0-100mm, Higher Can Be Customized
Print Resolution 720*360dpi, 720*720dpi, 360*1080dpi, 720*1080dpi, 720*1440dpi, 1440*1440dpi
Printing Speed 15sqm/H-30sqm/H
Life Of Printed Image 3 Years (Outdoor),10years (Indoor)
File Format TIFF, JPEG, Postscript, EPS, PDF Etc.
RIP Software UltraPrint/ Photoprint/ Onyx
Power Supply 220V 50/ 60Hz (10%)
Operation Environment Temperature 20 To 28℃, Humidity 40% To 60%
Warranty 13 Months Exclude The Consumables

PLASMA CUTTER Applications

Advertising industry: Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.

Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and other metal plate and tube.

package and delivery for Gantry cnc plasma cutter

All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.

package and delivery for portable cnc plasma cutter

We also have Gantry CNC plasma cutting machine with rotary device to cut metal tubes for option.

International Shipping Around the World

All of our cutting machines can be sent to all parts of the world by sea, air, international expFEDEX, UPS, etc. You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service
