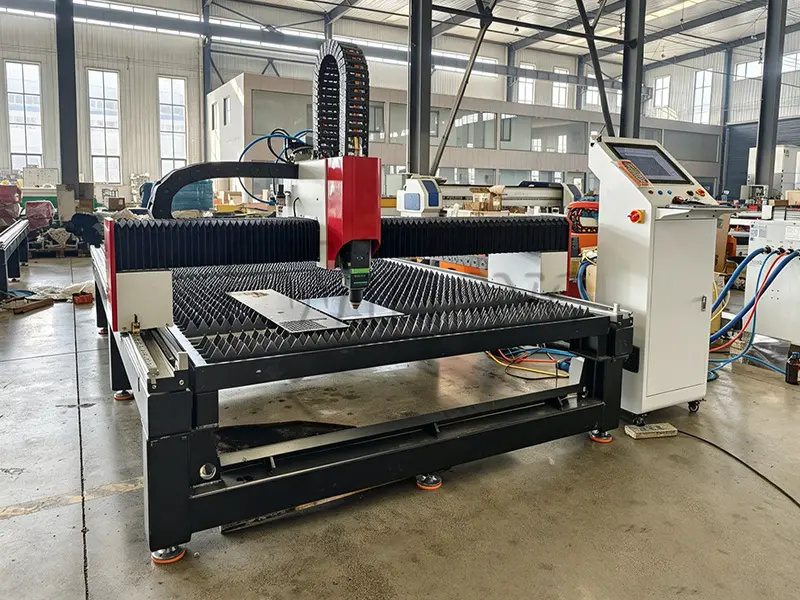

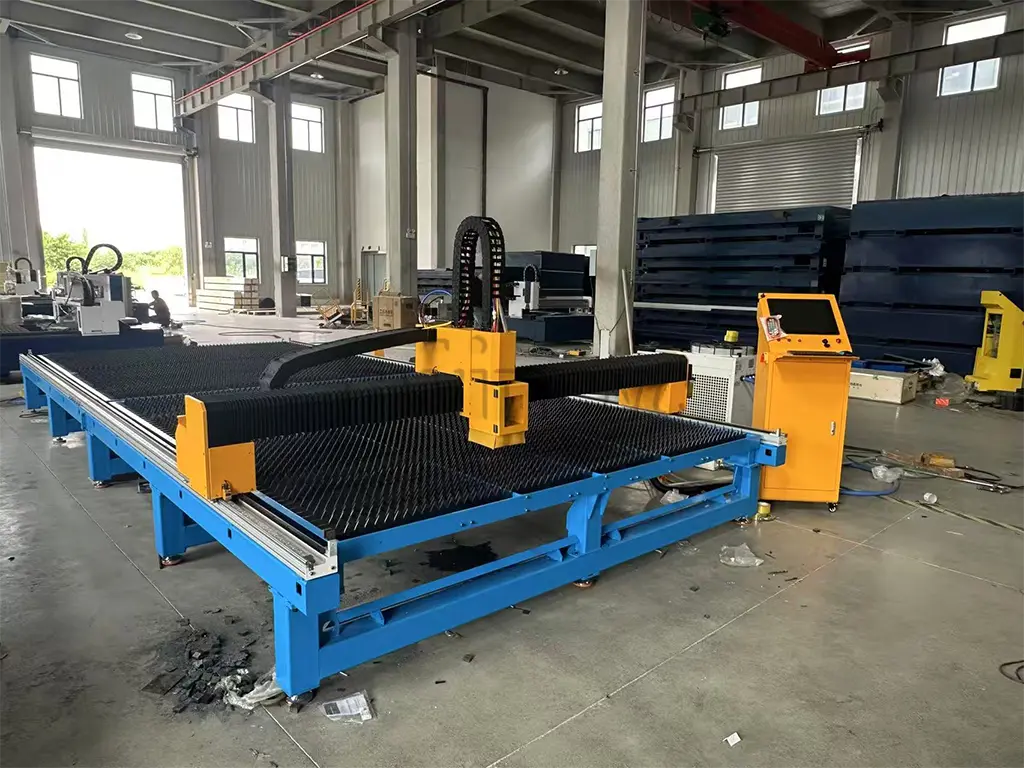

When setting up a fiber laser processing shop or expanding factory capacity in space-constrained facilities, plant managers and fabrication owners frequently ask: what is a detachable laser cutting machine and how does it work to lower logistics costs and overcome tight doorway installations? Traditional large-format laser cutting tables require wide crane access, specialized flat-rack containers, and expensive freight handling. By re-engineering the heavy-duty machine bed into precision modular segments, a Detachable Laser Cutting Machine breaks down into manageable structural units for easy shipping in standard sea containers and rapid re-assembly inside tight workshops. At Jinan Allwin CNC Machinery Co., Ltd. (Fwincnc), our modular laser systems combine rugged structural rigidity with flexible transport ergonomics to maximize return on investment for global fabricators.
1. Modular Architecture: How the Machine Bed Detaches and Reassembles
To understand what a detachable laser cutting machine and how it works involves, you must look at its structural frame engineering and split-bed connection mechanics.
Unlike welded single-piece machine beds, a detachable frame uses high-precision locator pins, interlocking keyways, and heavy-duty structural bolts to join split gantry bed segments.
-

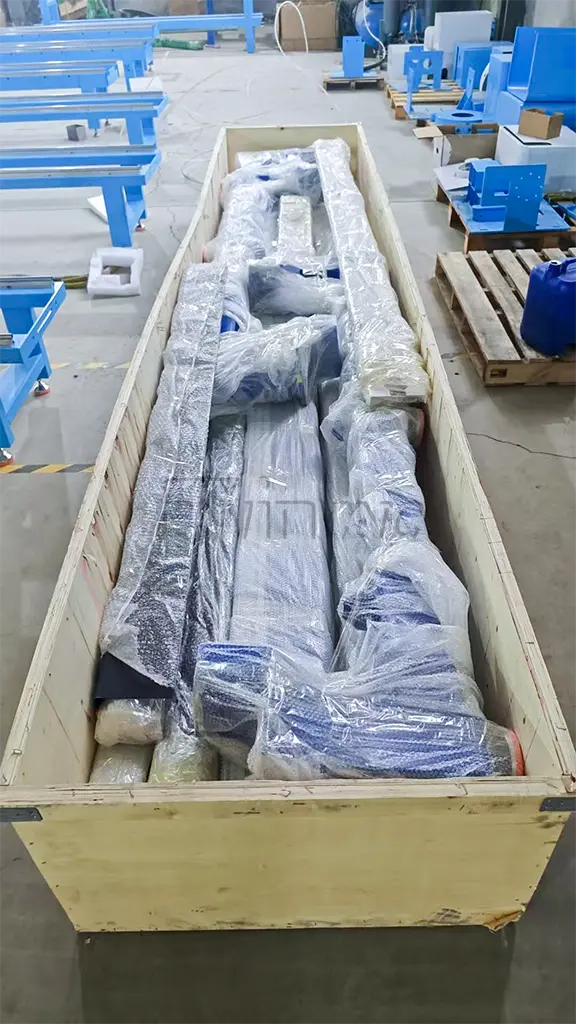

Split Frame Geometry: The machine bed separates longitudinally or transversely into modular blocks that fit neatly inside standard 20-foot or 40-foot shipping containers without requiring open-top or flat-rack transport.
-
Taper Pin Positioning: Precision machined locating pins ensure that when the bed halves are bolted back together on-site, axial parallelism and bed flatness return to factory tolerances within 0.02 mm.
-
Continuous Linear Motion Tracks: The high-precision linear guide rails and helical rack-and-pinion drives span seamlessly across the bed joint, ensuring zero loss in acceleration or cutting accuracy during high-speed gantry travel.
2. Key Advantages over Standard Single-Piece Laser Tables
| Performance & Logistic Feature | Standard Single-Piece Laser Cutter | Detachable Laser Cutting Machine |
| Container Shipping Costs | Requires expensive open-top or flat-rack containers | Fits into standard 20ft or 40ft HQ ocean containers |
| Factory Access Requirements | Needs wide roll-up doors and overhead crane clearance | Navigates through standard double doors and tight hallways |
| On-Site Installation Time | Ready upon rigging, but limited by site entry constraints | Rapid modular assembly using built-in leveling alignment |
| Future Workshop Relocation | Difficult and costly to move between facilities | Easily disassembled and transported to new job sites |
| Structural Frame Stability | High rigidity welded bed | Heavy-gauge reinforced modular bed with zero flex |
3. Step-by-Step Assembly Procedure on the Shop Floor
Setting up a Detachable Laser Cutting Machine after delivery involves a systematic re-assembly sequence executed by field engineers:
Unload the compact bed modules from the standard shipping container using standard forklifts. Move each segment into position on the shop floor.
Align the bed segments using precision taper locator pins. Insert high-tensile structural bolts and torque them to factory specification to form a rigid single bed.
Adjust the heavy-duty leveling pads across the entire frame footprint using precision spirit levels or laser alignment tools to eliminate bed twist.
Mount the lightweight aluminum gantry across the unified rails. Connect the fiber laser source, gas lines, and CNC control cabinet prior to test firing.
4. Ideal Applications for Modular Laser Cutting Systems
Asking what is a detachable laser cutting machine and how does it work highlights key operational scenarios where modular designs excel:
-
Facilities with Restricted Access: Ideal for basement workshops, upper-floor industrial spaces, or older factories with small entrance doors.
-
International & Cross-Border Logistics: Saves thousands of dollars per shipment by utilizing standard closed ocean containers instead of specialized heavy-lift cargo transport.
-
On-Site Construction & Field Fabrication: Allows large-format cutting tables to be disassembled, moved, and reassembled directly at large shipyards or building construction sites.
By combining easy transportability with uncompromising structural stability, Fwincnc detachable laser cutting machines enable metal fabricators worldwide to deploy high-power laser technology anywhere production demands.
