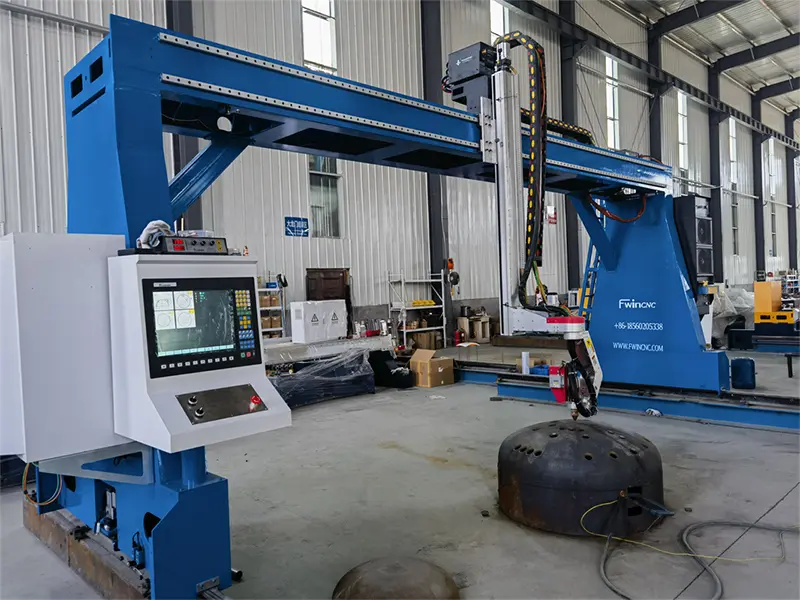

The fabrication of pressure vessels, boilers, and heavy-duty tanks demands more than just standard cutting—it requires absolute structural integrity and perfect weld preparation. As industry standards for safety and durability tighten, Jinan Allwin CNC Machinery Co., Ltd. (Fwincnc) is proud to introduce its specialized High-Precision Head Plasma Cutting Bevel Machine, specifically engineered for the rigorous demands of the pressure vessel sector.
The Challenge of Pressure Vessel Fabrication
Pressure vessels operate under extreme stress, making the quality of the weld joints critical. Traditional manual beveling or straight cutting often results in inconsistencies that lead to structural vulnerabilities. Our CNC plasma beveling machine addresses these challenges by automating the complex geometry required for V, Y, X, and K-shaped bevels.
Core Technical Advantages
- High-Precision Beveling Head: Equipped with a multi-axis rotation system, the cutting head can achieve precise angles (up to ±45 degrees) with micron-level repeatability. This ensures that the root gap and bevel face are perfectly uniform for automated welding processes.
- Specialized for Large Formats: Designed for heavy plates, our gantry plasma cutting system provides the stability and torque necessary to handle the large-scale components typical in oil, gas, and chemical storage manufacturing.
- Intelligent Height Control (THC): To maintain the exact bevel angle on large, slightly uneven plates, the integrated arc voltage height control ensures a constant distance between the torch and the material, preventing gouging and ensuring clean edges.
Strategic Efficiency for Heavy Industry
For manufacturers in Shandong and beyond, the Fwincnc Plasma Bevel Machine represents a significant leap in productivity.
- Reduced Post-Processing: By delivering “weld-ready” parts directly from the cutting table, the need for secondary grinding or edge preparation is virtually eliminated, saving hundreds of man-hours per project.
- Optimized Material Utilization: Advanced nesting software integration reduces scrap, which is essential when working with expensive high-strength alloys or thick carbon steel.
- Versatile Power Sources: Compatible with high-definition plasma power sources, the machine achieves a laser-like finish on thick sections where traditional fiber lasers may struggle with cost-efficiency.
Why Fwincnc is the Industry Standard
As a premier manufacturer of industrial CNC machinery, Fwincnc combines robust engineering with intuitive software. Our machines are built to withstand the 24/7 duty cycles of heavy fabrication plants.
- Expert Support: From our headquarters in Jinan, we provide comprehensive technical guidance, ensuring your team can master complex 3D beveling paths quickly.
- Complete Ecosystem: Beyond the machine, we provide the specialized plasma electrodes and nozzles required for high-current beveling, ensuring your production line maintains its peak performance.
