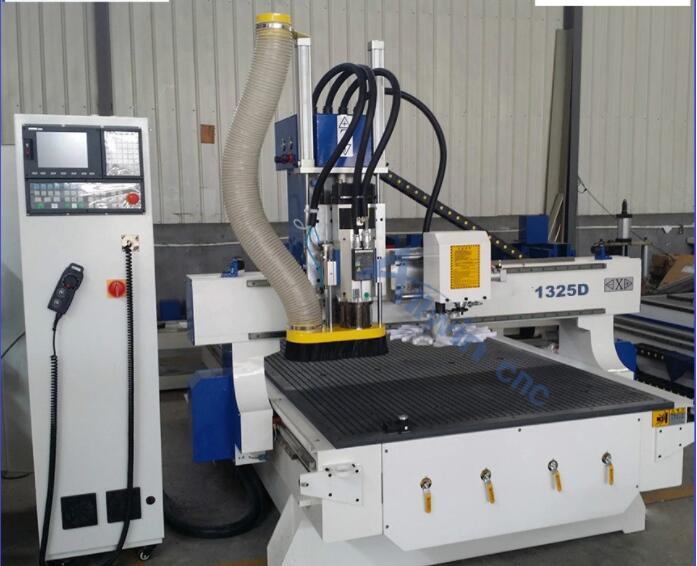

Woodworking ATC CNC Router Machine

woodworking ATC cnc router machine
ATC CNC ROUTER MACHINE
woodworking ATC CNC ROUTER MACHINE
woodworking ATC cnc router machine
ATC CNC ROUTER MACHINE
woodworking ATC CNC ROUTER MACHINE

why order ATC Cnc router

1)Welded steel pipe lathe bed, strong and never out of shape to keep working steady.

2)Double  japanese servo motors and drivers of Y axis which can ensure steady movement

3)Rack gear transmission ensures fast speed and high accuracy

4)Imported HIWIN square rail ensures high accuracy and heavy workload

5)Automatic oil lubricationsystem to keep cnc router parts have long time life.

6)No need change tools bits by hand when proce different works

7)fast speed automatic tool change.

Parameter for woodworking aTC cnc router machine
CNC machineryCarousel automatic tool changer cnc router machine 1325
X,Y,Z Working Area1300x2500x200mm
X,Y,Z Traveling Positioning Accuracy±0.03/300mm
Table SurfaceVacuum and Table with 11kw vacuum pump
FrameWelded Structure,8mm heavy duty T-structure
X, Y StructureHelical Rack gear, Taiwan Hiwin Rail Linear Bearings
Z StructureTaiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
tool change 12 tools with carousel disc style
Max. Rapid Travel Rate45000mm/min
Max. Working Speed30000mm/min
Spindle Power11.0kw ATC air cooling spindle
Spindle Speed12000-24000RPM
Drive Motors850W Japanese yaskawa servo motor and driver
Working VoltageAC380V/50/60Hz,3PH
Control SystemTaiwan SYNTEC control system
Z sensor high precision Z sensor
Software CompatibilityType3 Software, (Option: Artcam Software)
Dust collector 5.5KW dust collector

why purchase woodworking ATC Cnc router machine?

1.if you are working on woodworking funitures cabinet processing.wood door works, wardrobes, wooden doors, bedside table  solid Wood doors,Cupboard doors, interior doors, sofa legs, headboards,  and other panel furniture.

2.if your cutting or engraving works needs to use different tool bits at same time

you must order ATC cnc router.its chaning tools is only 5s.

3.if changing tools is bothering you or wasting your time than order automatic tool change cnc router

4.1. Function: disc carousel ATC CNC router is suitable for routing, drilling, cutting, and edge chamfering.

5. working Precision: Excellent spare parts, accurate precision detection instrument, which make sure woodworking cnc router machine with perfect location and working precision.

6. automatic tool change spindle with Italy HSD 9.0KW air cooled.(china ATC spindle for option)to have big cutting capcicty

7. Table: Double-layer compound grade board table design, rugged construction, non-deformation,with functions of instant adsorption and release.

8. Very precision tool setting gauge-Z Sensor to speed up to read distance from tools bits to material.

if you have business for Chairs legs or table legs or bed legs or other cylinder processing than you can add rotary axis on machine bed or beside of machine bed.

9.stable SYNTEC controlling system suppports tool length compensation with simple syntax,conveninet and quick to meet Multi-axis group application.

z axis tool sensor

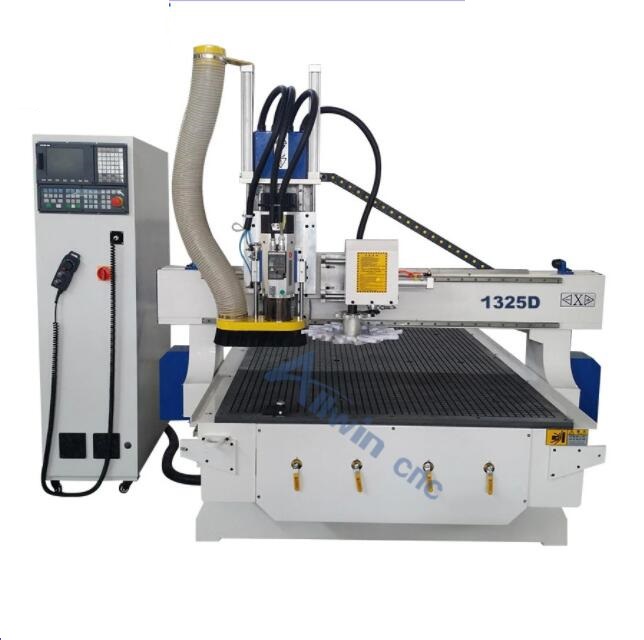

2Carousel Auto Tool Change CNC Router (1)
ATC CNC ROUTER MACHINE
application or projects for disc aTC cnc router

Automatic tool changer cnc router is the most popular equipment for woodworking funitures cabinet processing.

wardrobes, wooden doors, bedside table  solid Wood doors,Cupboard doors, interior doors, sofa legs, headboards,  and other panel furniture.

1. Furniture industry: Processing various furniture such as door, window, cabinet, craft wood door, screen, etc.

2. Advertisement: Carving and cutting various labels and number plate,gifts and souvenirs.

3. Arts and Crafts: Carving characters of any languages and graphics on gifts and souvenirs.

4. Any kinds of wood,Aluminum board, plastic, density board, wave board, PVC, acrylic, and other nonmetal materials

subjects for Woodworking ATC CNC ROUTER
Subjects for CNC ROUTER

How to order 4 axis cnc router with rotary axis?

if you are interested in 4 axis rotary axis cnc router machine please answer us two question so that we could give best option according to your demand.

What diameter for cylinder bar do you need?how long for cylinder bar?

4th Rotary axis have different processing diameter for cylinder 100mm,200mm,300mm,350mm diameter maximum.

Generaly speaking,its length allow to processing is 1000mm,1500mm,maixum 2000mm

Normally speaking,we have following different four styles for rotary position–Rotary axis beside of cnc bed,

put rotary axis on cnc bed,put rotary axis on front of bed.

there are two table like vacuum table with adsorption pump 7.5KW or 11.0KW(left photo is vaccum table)

another table is T-Slot aluminum(Right photo is T-Slot with aluimun table)

4 axis cnc router with rotary
Rotary axis cnc router 1325
cnc router with rotary
4th rotary axis

package and delivery for Woodworking ATC CNC router

 Contiune listening to suggestion from customer Plus practical experience tell us what type of package could protect our machine.how to pack our machine to avoid wet from our sea transportation.

we pack plastic film around of CNC router machine first and than put into wooden case.which does not request fumigation certificate..

International Shipping Around the World

All of our cutting machines can be sent to all parts of the world by sea, air, international expFEDEX, UPS, etc. You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service

wooden case cnc machine
product delivering
