super cheap ATC CNC router 1325

Advantage for Super cheaper ATC cNC router 1325 with auto tool changer

To make most of workshop owner afford ATC CNC router 1325 with linear auto tool changer

And improve their working speed to save more labor cost.We prefessonally created this type super CNC machinery to help them.

Automatic tool change cnc router 1325(ATC cnc router)with 9.0KW Spindle with 12 tools work faster with working processing accurately and saving changing tools bits to process cabinate or kitchen closet.

magazine(tool changer)is installing under of gantry or beam

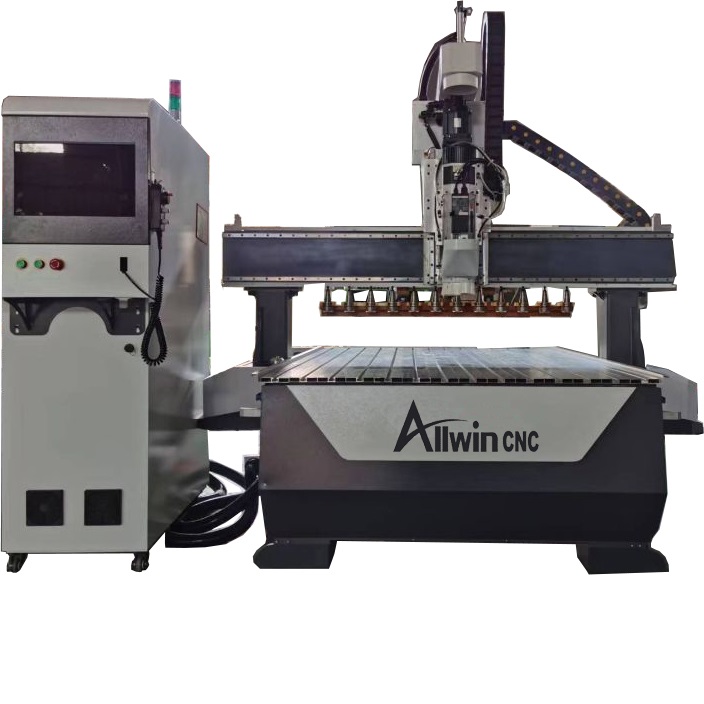

SUPER CHEAP ATC 1325 CNC ROUTER

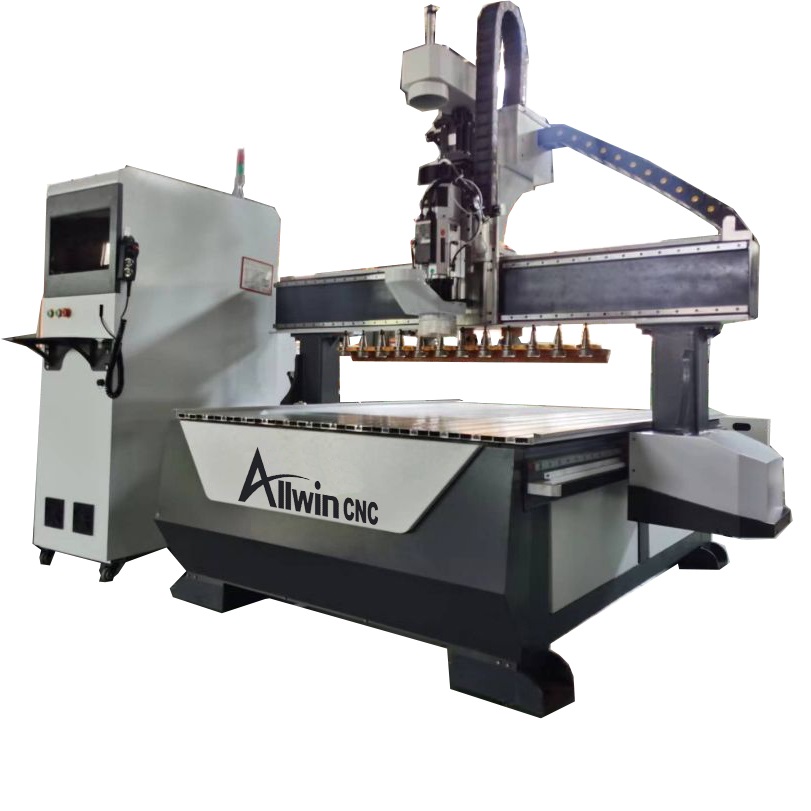

super cheaper ATC cnc router 1325
SUPER CHEAP ATC 1325 CNC ROUTER
super cheaper ATC cnc router 1325
what is ATC cnc router?

ATC is short from Automatic tool changer

On the market for CNC woodworking machinery at present, there are two kinds of woodworking machining centers:Here we call them ATC CNC router

carousel automatic tool changer CNC router and linear automatic tool changer(linear Auto change CNC router)

Spindle Style:9.0KW ATC spindle with air cooled/6.0 ATC spindle with water cooled.

9.0KW with air cooler is more popular for woodworking CNC machinery with efficient capacity.

control system:BAO YUAN Brand in single carbinet



ATC CNC ROUTER 1325
ATC CNC ROUTER 1325
Model:1325/1530
Category: CNC router with linear auto tool changer
tools numbers10 tools with Linear auto tool changer
Brand:allwin cnc
customized working area can be customzied according to customer request
Standard Price: $8560.00 / Set
Price Range: $8560.00 to $16000.00 / Set According to Configurations
Supply Ability: 150 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd
Payment Terms: T/T,L/C

Features for Linear aTC CNC ROUTER 1325/2030

 1325/2030 CNC ROUTER Linear Automatic tool changer  CNC ROUTER
X axis working area1300MM or customized size
Y Axis working area2500MM or customized size
Z axis 200MM(300mm-400mm) or customized according to request
Motor and driveleadshine servo motor and driver 1300W
electricity  carbinet Single
table surfaceT-slot with vacum table combined/only T-slot for option
spindleCHINA brand ATC spindle 9.0KW with air cooler
Structure for cnc machine bedWelded frame
       X,Y.Z structureX,Y,transmission is HIWIN 25 square guild rails
Y axis Xinyue Helical rack and gear
Z axis TBI ball screw
Power Source3 Phrase AC380V
Spindle powerChina HQD9.0KW with air cooler  18000RPM
Dust collector5.50KW for option
Z sensor automatic
Electrical componentsCHINT
controller systemBAO YUAN
machine size 3300mm*2200mmx1700mm
lathe structure steel pipe welding lathe bed
oiling system automatic oiling system
materialwood,Acylic and foam board

why use cnc router with automatic tool changer

Our ATC cnc router use square tube welding structure bed,which has the chrateristics of good ragidity,High precision with quite running.

Our Carousel Auto Tool Change CNC Router or Linear ATC cnc router  is equipped with Japanese YASKAWA servo motor. It is able to run with low noise, high speed and high accuracy. We adopt italy HSD automatic tool changer spindle in order to makes the machine with high precision, long service time and stable movement.

The Taiwan linear guide rail with high precision is heavy loading and durable.

Why choose this type of CNC router with automatic tool changer?

Our auto tool change cnc router Linear style with China brand leadshine servo driver and motor 1300W with china brand control system baoyuan.

 the auto tool sensor enables ATC cnc router compensate the tolerance of the tool length.

All our woodworking cnc machinery will equipment with strong dust collector to ensure site cleanliness during the machine operation.

 All our woodworking cnc router provides automatic lubricating system to have easy maintenance for guild rails and reduce noisy.

working table for ATC cnc router

1)there are two choice for table surface: One is T-slot aluminum table without automatic sunction.

we use Clamp to fix work pipeces on the table.its biggest advantage is its very convinient to fix or lock smaller pieces like:Solid mould or car mould or foam materials.

2)Another one is vacuum table with vaccum pump

Another table is vacuum suction worktable(adsorption table)with 7.5 vaccum pump or 11KW Vacuum pump.

vacuum pump with air cooled or water cooled.water cooled has strong suction capacity at cheaper price.However.its package is bigger plus maintaince process is complicated especially to customers from cold countries.

Vacuum pump with air cooled has very small package,don’t need maintaince for it.that is why air cooled vacuum pump are more pouplar than western worlds customers.



package and delivery for woodworking cnc machinery

To keep away moisture from sea transportation.we need pack whole machine with plastic film

we put machine into wooden case.

wooden case cnc machine

International Shipping Around the World for its accessories spare parts.

All of our CNC machinery can be sent to all parts of the world by sea, air, international expFEDEX, UPS, etc. You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service
