5 axis mini cnc router

Model:4040/6060/6090/1210
Category:Mini desktop 5 axis cnc router
ATC toolsAutomatic tool change for option
brandallwin cnc
Rating: 4.8 /5 based on 61 votes
Standard Price: $5800.00 / Set
Price Range: $5800.00 to $20000.00 / Set According to Configurations
working sizeswing 5th axs 360 degree
customssupporting customized

how does Mini 5 axis CNC Router works?check video

No.6060 cnc router5 AXIS CNC router
1model 6060
2 effective working area for 2D600mmx600mmx200mm
3Table size(X,Y)600mmx600mm
45th axis Rotary axis Center height 98mm(customized according to request)
working table 100mm*110mm(customs according to request)
3Drivers and motorDelta servo motor and driver
4Spindle 3.2KW spindle with water cooled
5table surfaceAluminum alloy T Slot with water tank
6Water cooling system with
7X axis dustwith
8Transmissionimported Lead ball screw for XYZ-axis
9Guide railHiwin square guild rails 2.0 for X,Y.Z axis
10working voltage 380V,3phase,50-60HZ
11FrameIron cast with table moving
12Running system Windows 7,8,10
13spindle speed24000rpm/min
14Max rapid travel speed8000mm/min
15max working speed6000mm/min
16X-Y resolution0.025mm
17computer interfaceUSB
18Carving InstructionsG code *Uoo *mmg *plt HPGL
19certificate CE
20Suitable softwareArtcam, Type3, Ucancam V9,etc
21working voltage One phrase AC220V
22oil lubrication system with
 computer interfaceUSB
23controller systemMACH3 controller
24inverter 4.0KW BEST brand
25Package size(L*W*H)1200MMX1200MMX1650MM

              desktop Mini 5 axis cnc router 6090

Desktop 5 axis cnc

Automatic tool change for option

with Z sensor for 5th Cradle 5 axis

DIY 5 AXIS CNC

custom different color Mini 5 axis CNC router

5 axis cnc

4040 Desktop DIY CNC router with 5 axis

5 AXIS MINI CNC ROUTER

why buy mini 5 axis cnc router from Us

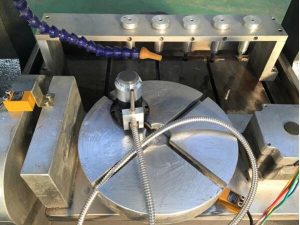

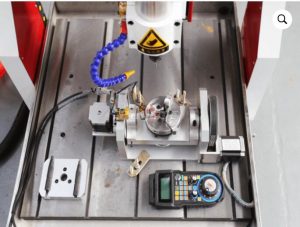

Cradle rotary axis from desktop Mini 5 axis cnc router

Our desktop 5 axis CNC router machine have a cradle rotary axis.

 This rotation axis can rotate 360 °  ±180 ° to ensure precision works with multi-dimensional processing works.

5 axis CNC mill desktop machine is very suitable for processing curved objects and processing 3D surfaces. Meanwhile, The rotary axis is with reducer, so small 5 axis CNC for sale can stop at any angel.

Mach3 Controller(6 Axis)

The control system of The Desktop 5 axis CNC machine is Mach 3 (6 Axis) controller. Its functions are very comprehensive and can quickly let users operate proficiently. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. It can control the small 5 axis CNC machine for 2D or 3D engraving, milling, cutting, drilling work, etc.

supporting compensation algorithm(Post-OPC)–5 axis mini cnc router

use advanced compensation algorithm, read 50 lines in advance, intelligent handwheel advance function

Heavy&precision lath bed–Desktop 5 axis mini cnc router

integrated cast iron casting forming thickening gantry

 working processing methods are diverse, flexible and efficient, simple and practical, multi-field application, high artificial intelligence degree with strong alternative

12 items need to be tested before delivery.

Repeat position test:

XYZ triaxial perpendicularity, optical plane test, rectangle test, square test, outer cylinder test, Inner hole test, surface test, limit test, low speed test, return to zero test, spindle test, vibration test, ultimate speed test, abnormal sound test
The surface of the prototype machine was finished milling twice to ensure the overall parallelism of 0.01mm

Professional team for support techincal.

faster response and long time working time 12 hours with 7 days online techincal supporting in English speaking.

who needs mini 5 axis cnc router

 Mini 5 axis cnc router has widely range of processing applications can be carved metal/non-metallic materials including but not limited to the following materials and application scenarios:

Aluminum alloy, stainless steel, bronze, brass, copper, magnesium alloy, chromium products, titanium alloy, zinc, acrylic, bakelite fixture, glass, jade carving, stone carving, plastic shell, stainless steel stretching parts, all kinds of material panel grinding, pearl drilling, mechanical watch internal parts processing, etc.

if you are DIY fan or you have your homeworks or hand crafts to do.This destop mini 5 axis cnc router is best choice.

                              45#steel screw                   jade buddha                plastic material                Aluminum

projects for 5 aixs cnc
5 axis cnc router projects
Related cnc router

package and delivery for Gantry cnc plasma cutter

All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.

package and delivery for portable cnc plasma cutter

We also have Gantry CNC plasma cutting machine with rotary device to cut metal tubes for option.

International Shipping Around the World

All of our cutting machines can be sent to all parts of the world by sea, air, international expFEDEX, UPS, etc. You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service
