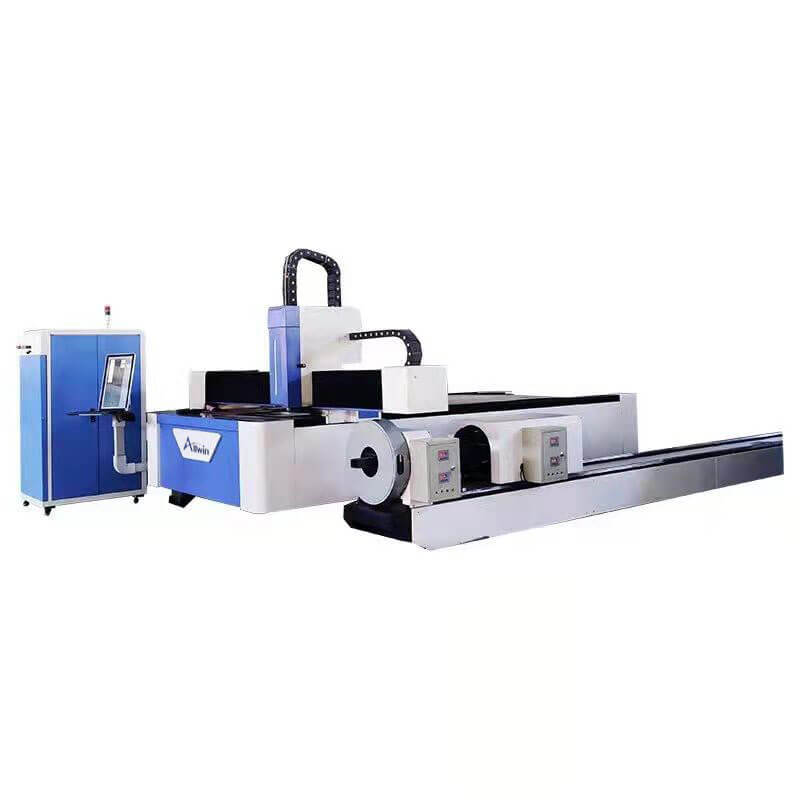

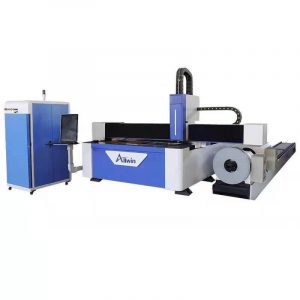

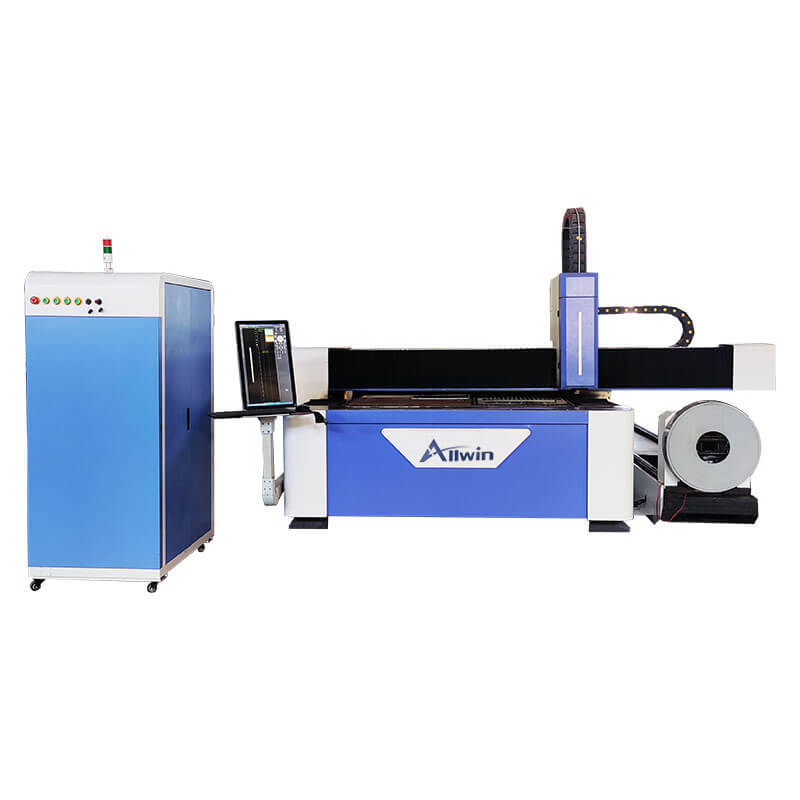

The Laser cutter for metal steel tube is designed by sheet bed and Rotary axis together.

Affordable metal sheet and pipe fiber laser cutter is a style of CNC laser metal cutting system Not only for metal plate and metal sheets with different thickness at different cutting speed.But also for metal pipe(metal tube)with different shapes.

Rotary Length:3m/6m is as standard

other length could be customized

Rotary diameter:150mm/220mm is standard.

other diameter of rotary axis can be customized



how does metal sheet and pipe laser cutter work?

parameter for metal sheet and pipe metal fiber laser cutter

Modelworking area(L×W)
3015 ST253000mm×1500mm
diameter for round pipeФ25mm-Ф200mm  300mm for optional
profile for square pipe 25mm*25mm—100mm*100mm
diagonal line for square pipe 30mm-160mm
Length for metal Pipe3M/6M
pipe styleSquare pipe or round pipe
laser Power1.5KW/2KWW/3KW/6KW
Z axis track300mm
software Cypcut 3000S controller
Drive motionJapanese Yaskawa servo
X,Y axis positioning accuracy±0.03mm/m
X,Y axis repeat positioning accuracy±0.02mm/m
X,Y axis max speed100m/min
transmissiongear rack
Max.load of worktable1000Kg
Working Voltage/Power380V/50HZ/10KW
service customized working area
feature for metal sheet and pipe fiber laser cutter

Steel plate weld machine frame:

The Laser cutter for metal steel tube is designed by lath bed and Rotary axis together.

High Rigidity machine bed sequence welding,adopts exclusive anneling pricessing with high-temperature furmace.

Effect force annealing treatment,high mechanical strength,not easy to deform.

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance

 light Aviation aluminum gantry reduced motor load so that greatly increase the processing speed.

Rotary axis—very professional clamp system.

pneumatic chuck;Fast speed, improved efficiency, four-jaw pneumatic clamping force to ensure cutting accuracy;

Special support frame to avoid sagging deformation and prolong the life of the chuck

Clamping range is wider and larger fixing capacity.

Our clamp system could protect pipe with fast automatic centering and clamping pipe.

Our clamp system has intelligent pressure feedback system with automatic pressure adjustment according to different pipe diameter.

Our clamp system does not need manual adjustment.

Our clamp system has own itelligent identification and holding of all kinds of pipe with own detection alarm.

Working size for metal sheet or metal plate:

3000mm*1500mm/4000mm*1500mm

6000mm*1500mm/4000mm*2000mm

6000mm*2000mm/8000mm*2000mm

 working size for metal pipe or metal tube.

for round pipe from Ф25mm-Ф200mm as standard size.

 for square pipe 25mm*25mm–100mm*100mm or diagonal line 30mm-160mm

How long is metal pipe or what length of metal tube??

Its length is 3M/6M/8M/12M.

This Metal is best option for new startup workshop less investment but making more work.

metal sheet and pipe fiber laser cutter
metal pipe clamp
