Mini Light Gantry CNC Plasma Cutter

advatnage for mini light gantry cNC plasma cutter

  portable Mini light gantry plasma cutter has aluminum frame with dual drive plus automatic height control system.flame torch for option. its very easy to move everywhere because of smaller package.

custom large working area 2500mm*6000mm/1500mm*3000mm/2000mm*4000mm

light gantry CNC Plasma Cutting Machine Details

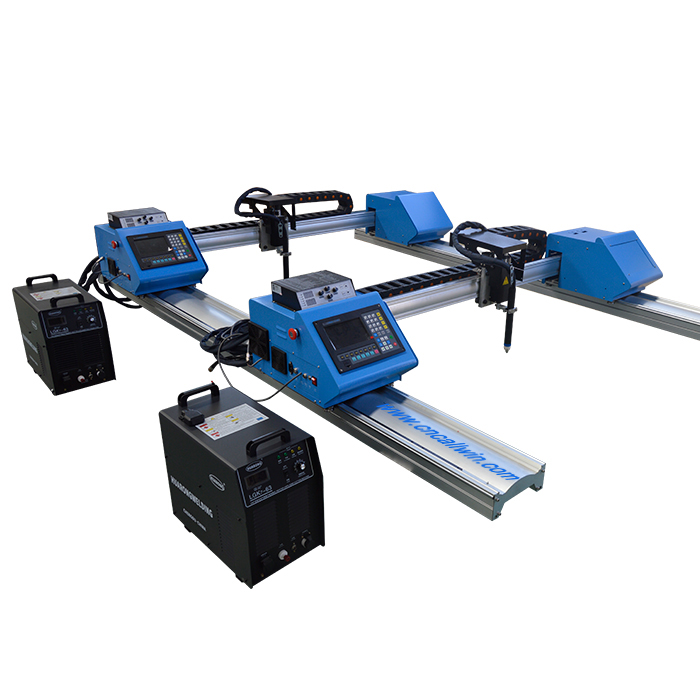

Dual Drive Plasma cutter

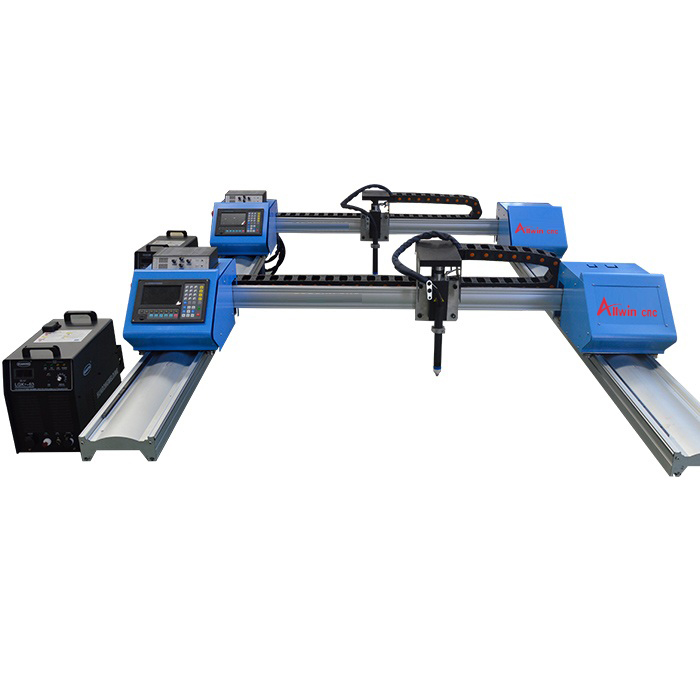

MINI LIGHT GANTRY cnc plasma cutter

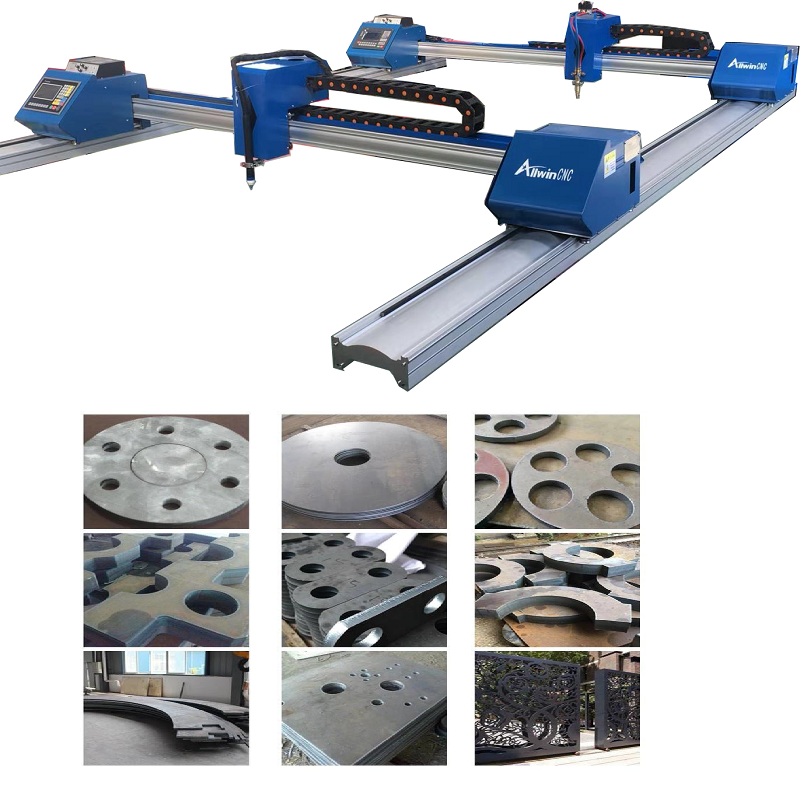

Mini gantry cnc plasma cutter

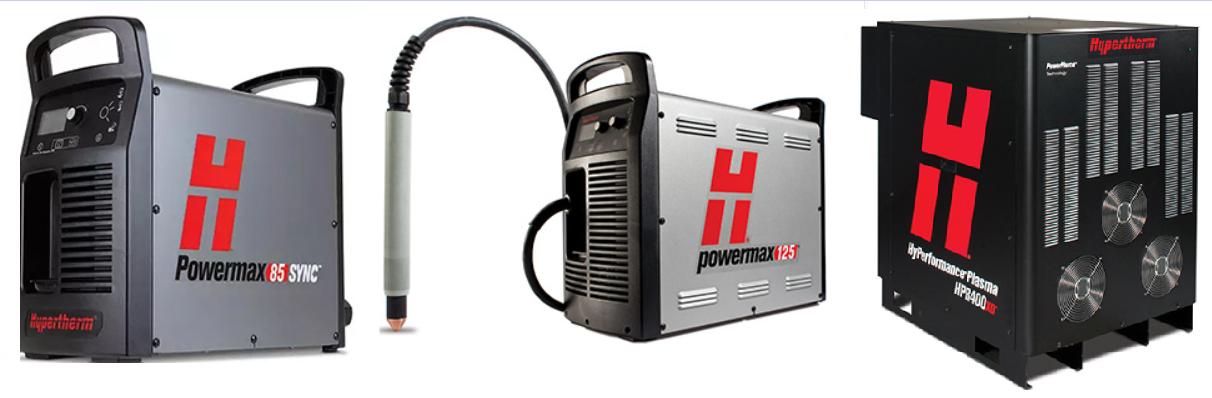

USA Hypertherm plasma generatorgenerator
Dual Drive Plasma cutter
MINI LIGHT GANTRY cnc plasma cutter
Mini gantry cnc plasma cutter
USA Hypertherm plasma generatorgenerator
Model:2040/2060
Category:     Light gantry CNC Plasma Cutter
Views:    26100
Brand:      allwin cnc
Rating: 4.8 /5 based on 61 votes
Standard Price: $1830.00 / Set
Price Range: $1820.00 to $2100.00 / Set According to Configurations
Supply Ability: 240 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd
Payment Terms: T/T,L/C,paypal,Westunion

Light gantry cNC Plasma Cutting Machine Videos

Touch screen control system Fangling 2100B supporting oxy-fuel,having break point .Fastcam  nest software.

plasma control system

automatic height control for plasma cutter 1621 to adjust distance from torch tip to metal plate

hight control 1621

Product Feature for two drive light gantry cnc plasma cutting machine

 Why Mini light gantry CNC plasma cutter is more popular by users?

The frame material comes with high performance aluminum table, which has a long usage life.

 We adopt dynamic and static graphic display, which is really easy to operate.

 The small package and sea freight is very economical in order to reduce cost.

 The Interfaces are both available in English and Chinese, which can be converted freely.

There is no heat affected and the thermal deformation is small.

 Product Description for clean cuts affordable price Mini portable plasma cutting machine with dual drive.

This mini light gantry cnc plasma cutter could automatic control by touch panel able to convert CAD file in computer through USB flash drive transmits, which could realize cutting all kinds of  graphs and also can program and operate directly on the machine. Due to the compact design and proper size, our product can placed everywhere to help release space so that saving a lot of sea freight.

Compared with general heavy gantry cnc plasma cutting machine, This style is smaller but reliable.

This mini metal plasma cutter provides fast cutting speed while cutting metals with a small thickness. There is no doubt that it will be an ideal facility for carbon steel, copper, iron, aluminum, galvanized, titanium and other metal plates.

Great Working Stability, Effective Shield Plasma High Frequency Interference

Working Environment for CNC plasma or flame cutting machine

parameter for good price stable working Dual drive cnc plasma cutting machine

1 Model ALLWIN-2040 ALLWIN-2560
2 Power Source AC220±10%  50/60Hz 220W
3 Cutting Mode O2/C3H8 Or C2H2
4 EffectiveCutting Range(Mm) 2000mmx4000mm 2500mmx6000mm
5 Plasma Cutting Gas N2,O2,CompressedAir
6 Flame Cutting Gas Oxygen+Propane Or Acetylene
7 Beam WidthRail Length(Mm) 2000*4000mm 2500*6000mm
8 Speed(Mm/Min) 50-10000mm/Min
9 Flame
Cutting Thickness(Mm)
5-150
(Oxygen + Acetylene Or Propane)
10 Plasma
Cutting Thickness(Mm)
2-20mm
11 Move Precision ±0.2mm/M
12 Torch Flame,
Electric Height Adjustment(±60mm)
13 Cutting System FANGLING F2100B    THC F1621
Beijing Starfire touch panel
14 Gas Pressure(Mpa) Max.0.1
15 Oxygen Pressure(Mpa) Max.0.7
16 Type Of Gas C3H8 C2H2
17 Emergency Stop Yes
18 Working Temperature -5~45℃
19 Power 8.5kw
20 Plasma Power 63A,100A,120A,160A,200A for option
21 ARC Untouched Arc Striking
22 Processing Materials Iron,Tianium plates
Steel Aluminum Sheets, Galvanized Sheets

We have a strong professional technical team to provide the best products and service for these metal plasma cutting machine..it is the best proper choice if you are working on metal industries.

We have experienced managers with the most perfect price system integration schemes for our customers.

Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.

We have been experienced in exporting the CNC Plasma machine for over 7 years, familiar with the different requirements from all kinds lines

Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field.

All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.

Cutting Capacity of plasma geneartor

China Huayuan PowerUSA Hypertherm Power
Power supplyCutting thicknessPower supplyCutting thickness
63A8mm45A8mm
100A15mm65A10mm
120A20mm85A12mm
160A30mm105A18mm
200A40mm125A25mm
  200A30mm

Related China metal cnc plasma cutter

package and delivery for two drilve portable plasma cutter

All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.

package and delivery for portable cnc plasma cutter
