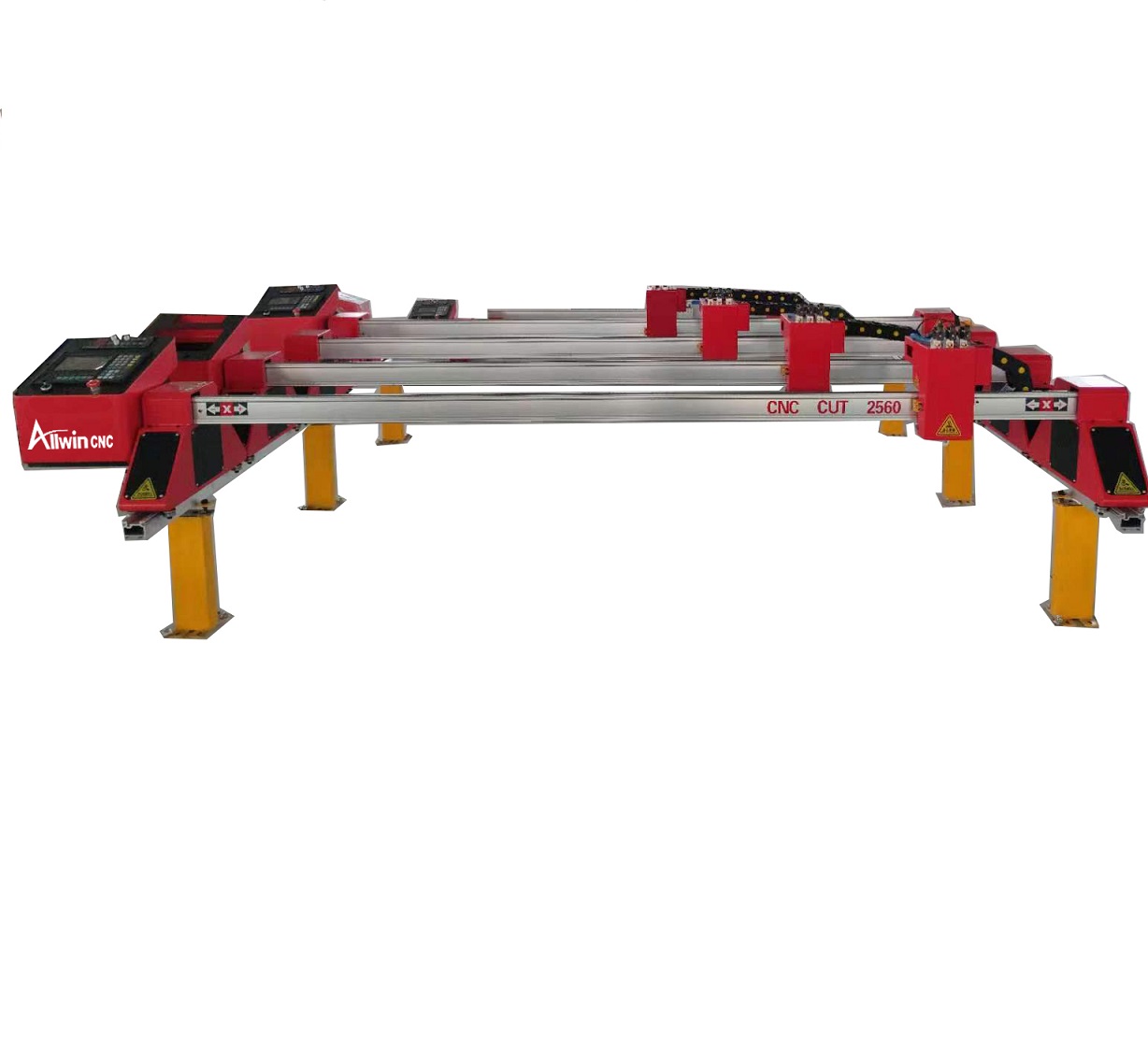

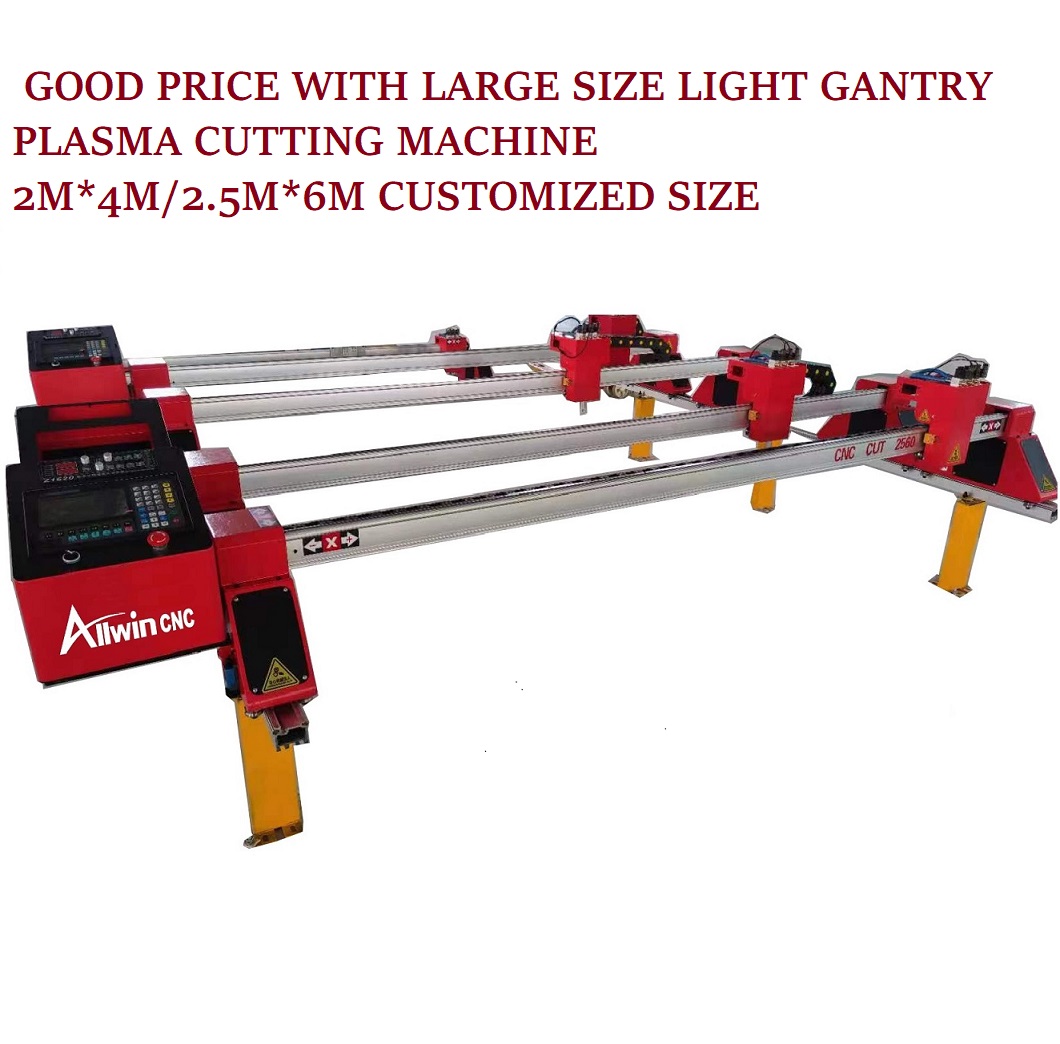

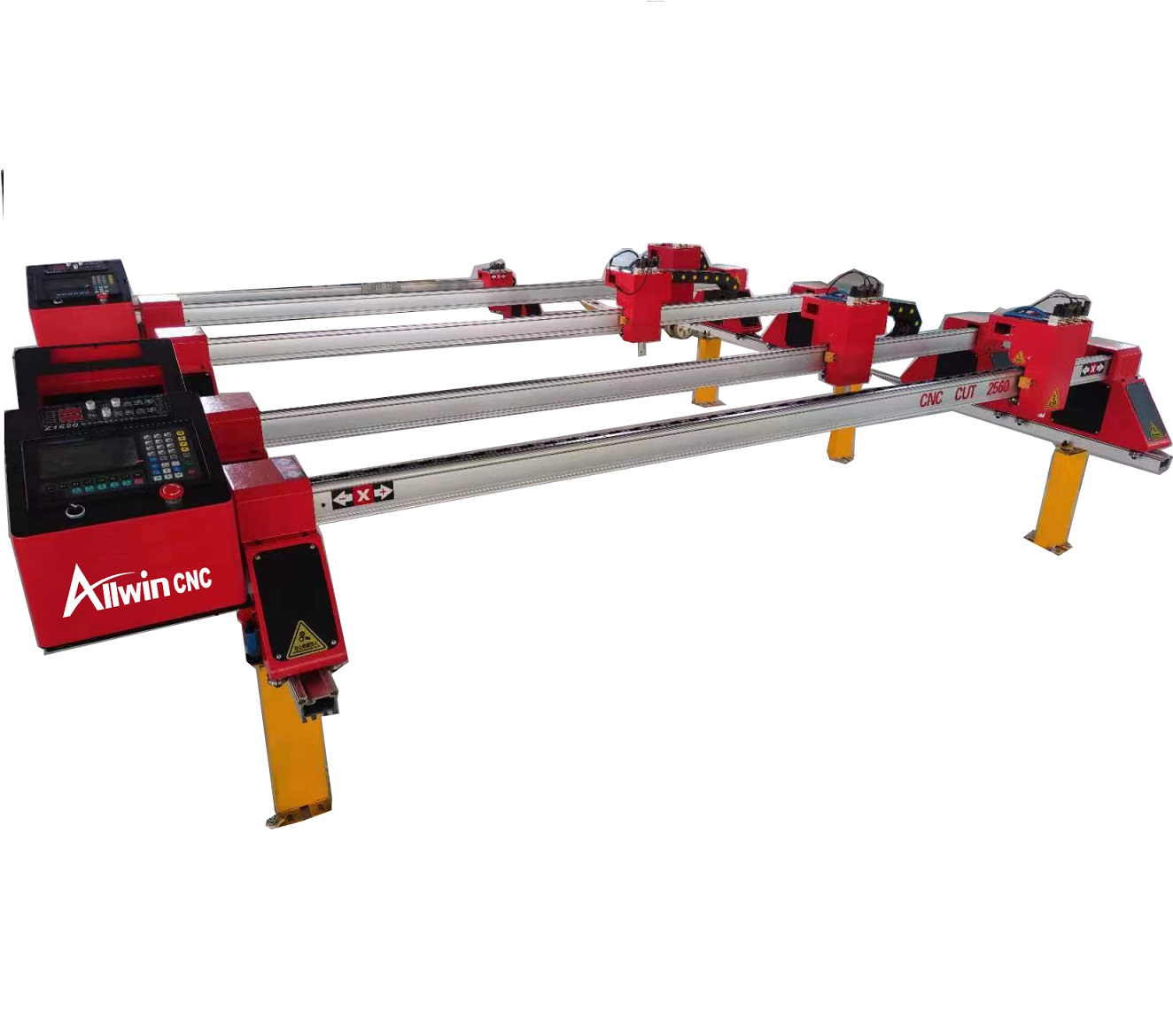

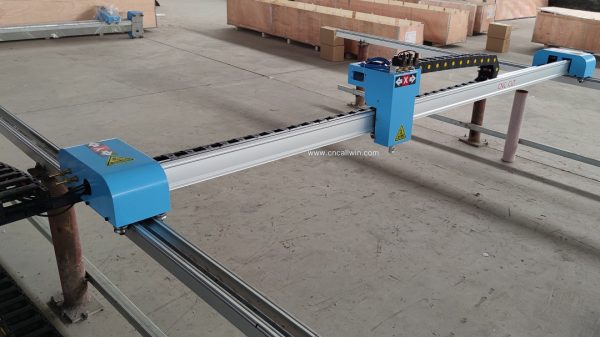

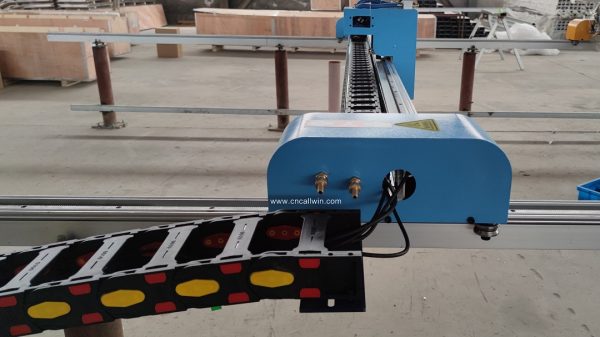

New Style Portable Gantry Plasma Cutter
new style portable metal plasma cutter
Manufacturer of New style portable gantry plasma cutter at competitive price

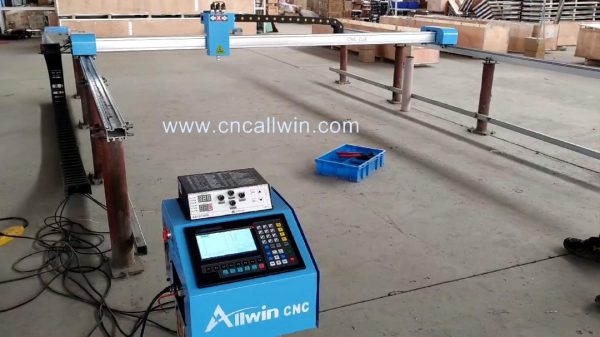

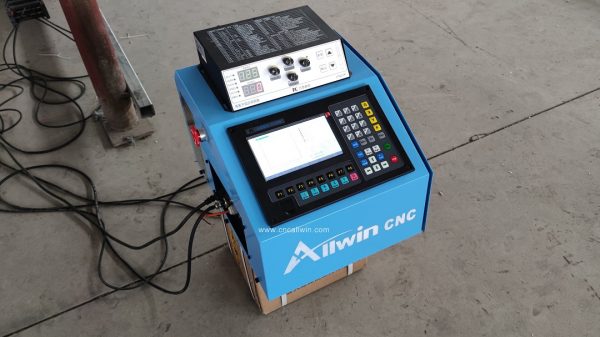

The plasma control cabinet is separated from the cutting machine,
new style portable gantry plasma cutter effectively reduce the impact of the gas in the cutting process on the human body;
The remote control can effectively increase the convenience of control;
The weight of the portable plasma gantry cutting machine is small,
its easy to carry and move; small size, convenient;
small package with small weight Reduce transportation costs;
portable gantry plasma cutter has larger cutting area.
New Style Portable Metal gantry Plasma Cutter Details
| Model: | 2040/2060 |
| Category: | New style Portable plasma cutter |
| Views: | 2100 |
| Brand: | allwin cnc |
| Rating: | 4.8 /5 based on 61 votes |
| Standard Price: | $1930.00 / Set |
| Price Range: | $1820.00 to $2100.00 / Set According to Configurations |
| Supply Ability: | 240 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd |
| Payment Terms: | T/T,L/C,paypal,Westunion |
China Plasma Cutting Machine Videos
new style portable metal plasma cutter Feature
The plasma control cabinet is separated from the cutting machine, it can effectively reduce the impact of the gas in the cutting process on the human body，,and while During operation, people do not need to move with the machine;
The remote control can effectively increase the convenience of control; The CNC plasma cutting machine can be operated by remote control, so that the plasma cutter operter can be far away from the plasma cutting gun, which reduces the damage of the flame to the human body and ensures the health and safety of the people.
The weight of the portable plasma gantry cutting machine is lighter, easy to carry and move;Compared with large heavy gantry plasma cutting machines and plasma cutting table, the mini gantry plasma cutter has small package size and light weight. and while small package size, transportation Reduce transportation costs;
Compared with the single-drive mini plasma cutting machine, the cutting quality is higher and the effective cutting area is larger.
| 1 | Model | ALLWIN-2040 | ALLWIN-2560 | |
| 2 | Power Source | AC220±10% 50/60Hz 220W | ||
| 3 | Cutting Mode | O2/C3H8 Or C2H2 | ||
| 4 | EffectiveCutting Range(Mm) | 2000mmx4000mm | 2500mmx6000mm | |
| 5 | Plasma Cutting Gas | N2,O2,CompressedAir | ||
| 6 | Flame Cutting Gas | Oxygen+Propane Or Acetylene | ||
| 7 | Beam WidthRail Length(Mm) | 2000*4000mm | 2500*6000mm | |
| 8 | Speed(Mm/Min) | 50-10000mm/Min | ||
| 9 | Flame Cutting Thickness(Mm) |
5-150 (Oxygen + Acetylene Or Propane) |
||
| 10 | Plasma Cutting Thickness(Mm) |
2-20mm | ||
| 11 | Move Precision | ±0.2mm/M | ||
| 12 | Plasma cutting Torch | Flame, Electric Height Adjustment(±60mm) |
||
| 13 | Cutting System | FANGLING F2100B THC F1621 Beijing Starfire touch panel |
||
| 14 | Gas Pressure(Mpa) | Max.0.1 | ||
| 15 | Oxygen Pressure(Mpa) | Max.0.7 | ||
| 16 | Type Of Gas | C3H8 C2H2 | ||
| 17 | Emergency Stop | Yes | ||
| 18 | Working Temperature | -5~45℃ | ||
| 19 | Power | 8.5kw | ||
| 20 | Plasma Power | 63A,100A,120A,160A,200A for option | ||
| 21 | ARC | Untouched Arc Striking | ||
| 22 | Processing Materials | Iron,Tianium plates Steel Aluminum Sheets, Galvanized Sheets |
||
We have a strong professional technical team to provide the best products and service for these metal plasma cutting machine..it is the best proper choice if you are working on metal industries.
We have experienced managers with the most perfect price system integration schemes for our customers.
Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy,
Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC Plasma machine for over 10 years,
familiar with the different requirements from all kinds lines
the principle of “the best products, the most reasonable price, the maximum benefits for customers”,
there are prestigious fame in the industry business field.
All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
Cutting material and applicable industry
New style portable plasma cutting machine，Mainly used for cutting carbon steel, stainless steel, copper, aluminum and other metal materials;and mainly used in automobile manufacturing, shipbuilding, petrochemical, and hardware industries, which can be adapted to large enterprises, small industrialists or DIY enthusiasts .
The new style portable gantry plasma cutting machine can be equipped with black wolf/p80 torches spare parts or fine torches. We can configure plasma cutting torch and plasma consumabless according to customer’s needs.
Depending on the plasma power source, the optimal cutting thickness is 3 to 50mm, and the maximum thickness can be cut to 100mm.
Cutting Capacity of plasma geneartor
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||
Related China metal cnc plasma cutter
package and delivery for our cnc plasma cutter
All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.
we here provide you one-stop solution for metal industries cnc machine at affordable price
