Metal Pipe Plasma Cutting machine

Why choose This Mini metal pipe plasma cutting machine

 hypertherm plasma cutting machine is designed to cut metal pipe or tube.little budget investment for round pipe or tube works with stable fast cutting efficiency.this type of metal plasma machine is made of heavy steel frame.

Overview
Model:3m/4m/6m/12m
Category:Economic metal pipe plasma cutting machine
Pipe Diameter from 80mm to 450mm
cutting thickness1mm-15mm thickness
BrandAllwin cnc
Standard Price: $2300.00 / Set
Price Range: $1230.00 to $20000.00 / Set According to Configurations
Supply Ability: 150 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd
Payment Terms: T/T,L/C/Paypal/Western union

Portable plasma cutting machines series is our company’s best-selling products, the product is light, easy to carry, widely used in the industrial production process, such as mass cutting of various metal patterns, cutting pipes, etc.
light H beam Portable plasma cutter is small in size, stable in operation, low in price, and has been widely praised by customers. Our customers are widely distributed in all regions of the world.

how choose metal steel pipe plasma cutting machine?

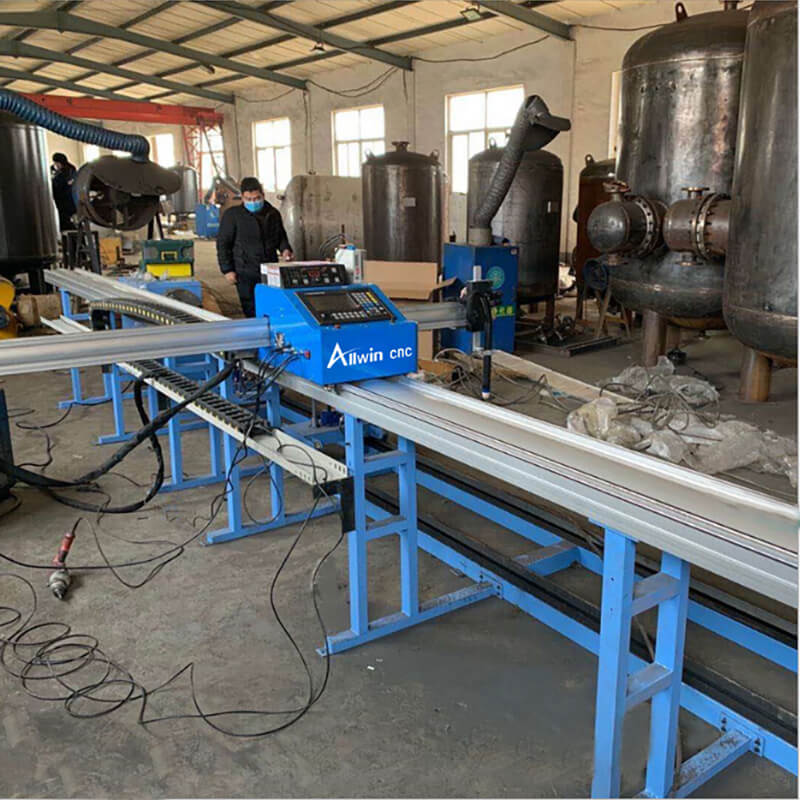

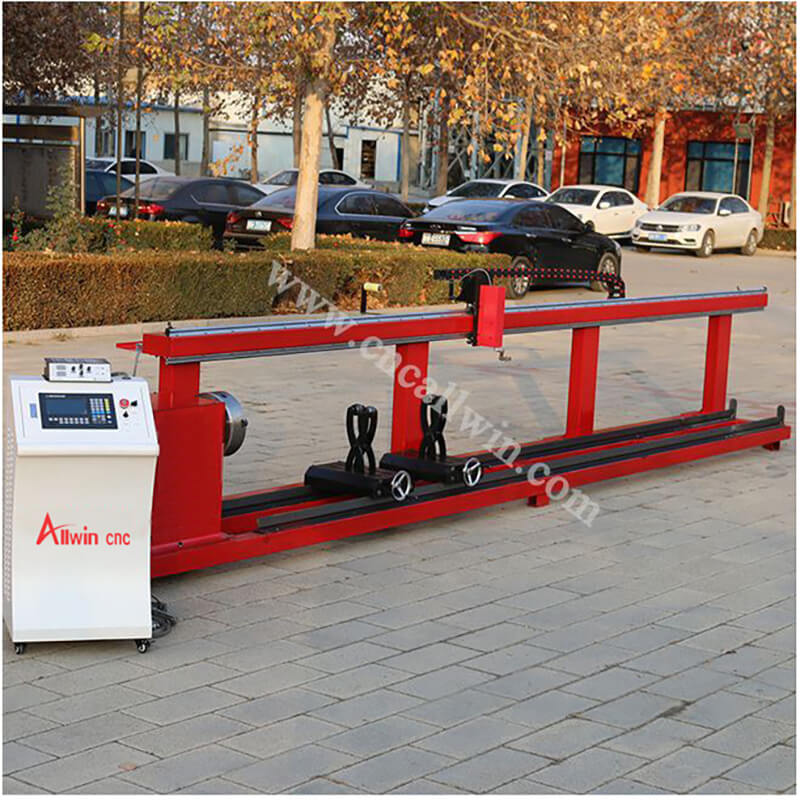

1.Professional metal pipe tube plasma cutting machine(check photo 01)

This metal pipe cutting machine could cut metal pipe projects only and its cuting diameter for metal tube is from 80mm to 350mm maximum with tube long extend to 10m meters..what is cutting thickness for pipe plasma cutting machine depends on plasma genrator.Here we listed different brand plasma source ablility to cut.

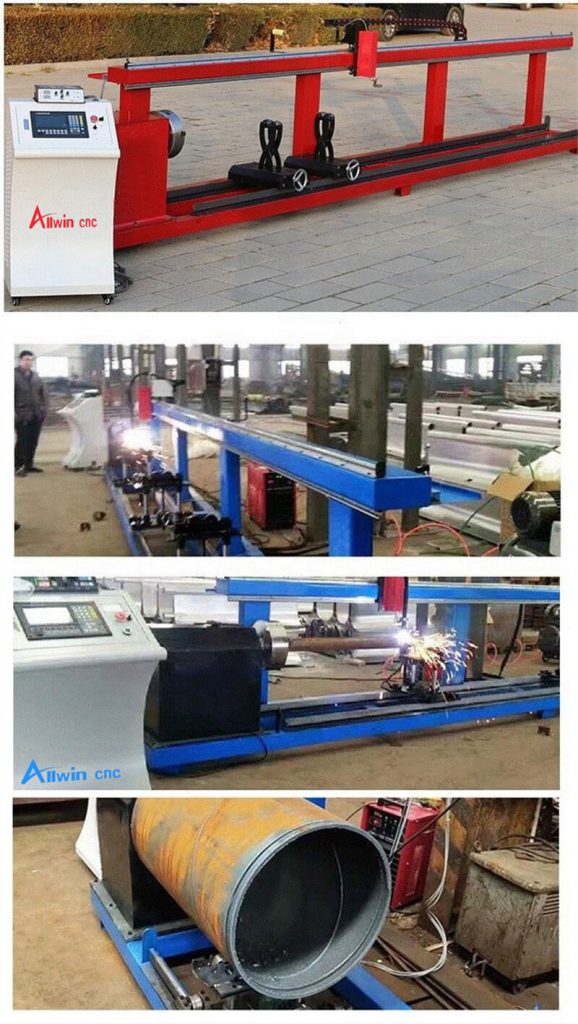

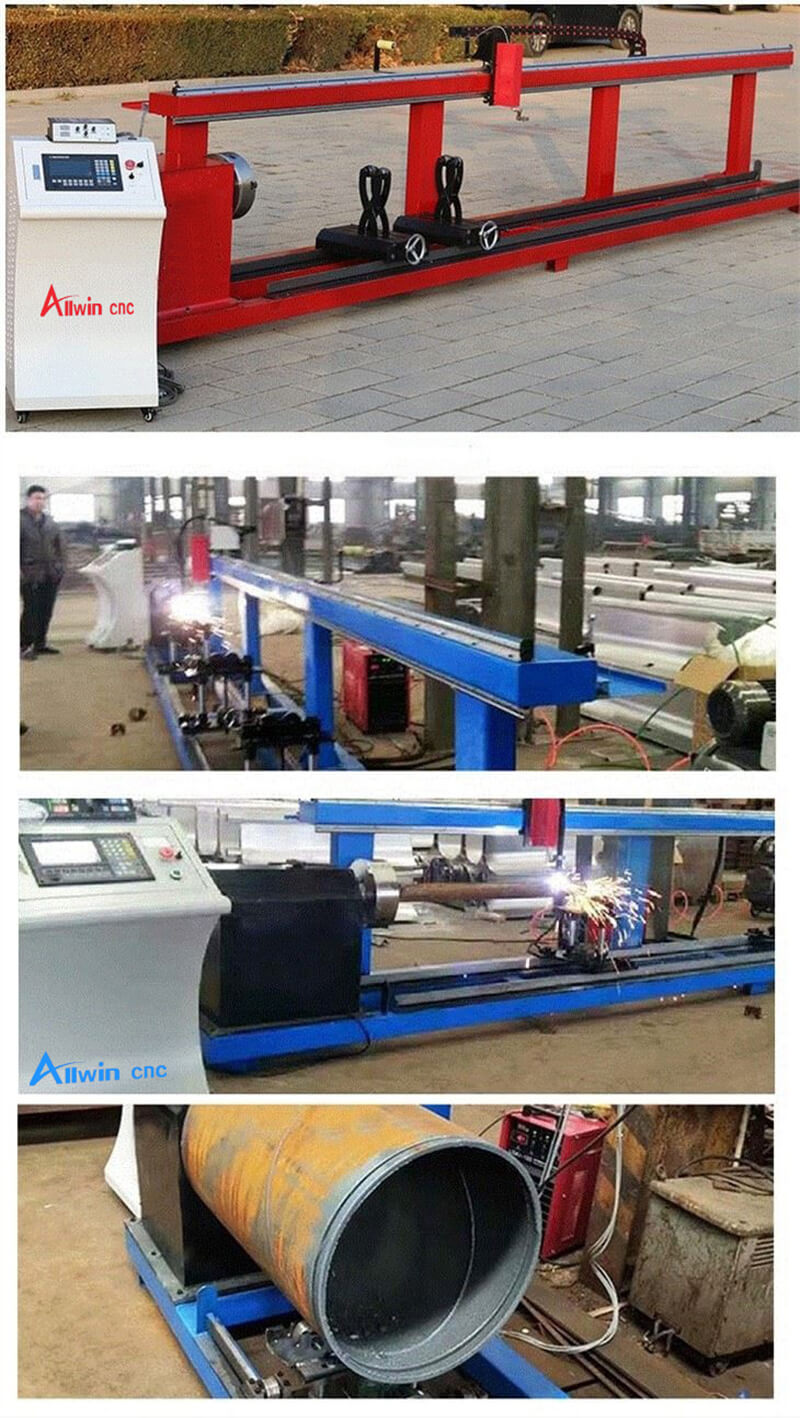

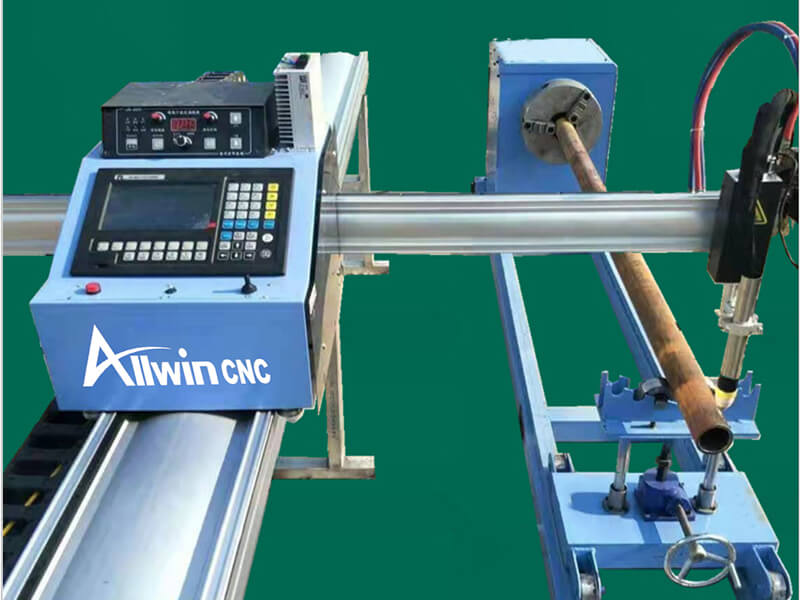

2.Metal tube-sheet plate intergrated plasma cutting machine(check photo 02,03)

this pipe support tube or pipe cutting mode and metal sheet model together.the controlling system FANGLING or START cutting system allows to shift metal sheet mode to pipe cutting mode. simple frame structure..You can build metal sheet cutting table according to your own design.i.e lots of customers like building water tank table to remove smoke from cutting processing

These two styles portable metal pipe plasma cutting machine are most popular for smaller steel industries or DIY or home works because of affordable price with completely controlling system and touch screen



Subjects for steel round Pipe Metal plasma cutting machine

Why automatic metal piple plasma cutting machine become more popular now?

The small plasma pipe cutter equipment for automatic calculation, nesting and cutting of round pipe intersection.  Widely used in pipe truss, dry coal shed, construction, without manual programming, just input steel pipe diameter, pipe thickness, intersection Angle and other parameters, the machine can automatically calculate, cut out the corresponding intersecting line end, intersecting line hole, etc. The automatic nesting function of pipe parts can cut a whole steel tube raw material into multiple sections at one time, without manual intervention in the middle. The automatic feeding function of computer realizes the optimization of raw material use, which greatly reduces the cutting time and improves the work efficiency while saving raw material costs for end users.

What size metal tube does pipe plasma cutting machine do?

Pipe cutting diameter ∮10-400mm, pipe cutting length: 0.5M-9M, pipe cutting precision: ± (0.1%+2mm).  The pipeline cutting speed is stepless adjustable via operation system.

metal pipe cutting projects

cutting Capacity of Different Plasma generator

China Huayuan PowerUSA Hypertherm Power
Power supplyCutting thicknessPower supplyCutting thickness
63A8mm45A8mm
100A15mm65A10mm
120A20mm85A12mm
160A30mm105A18mm
200A40mm125A25mm
  200A30mm
Related Products

package and delivery for portable metal steel Tube cnc plasma cutter

All of our export machinery and equipment adopt standard plywood boxes after high temperature and high pressure treatment. The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.
We have our own long-term cooperation transportation company, which will give us more favorable prices and feasible suggestions in transportation prices, which will minimize the customer’s freight expenses, and there will never be overcharges.
