Portable Plasma Cutter

mini Portable cnc plasma cutter for sales at affordable price

customized size mini portable plasma cutter has Shanghai FL2100 control system,Professional nest software STARTCAM with stepper motor and drive plus Automatic height control.

Overview

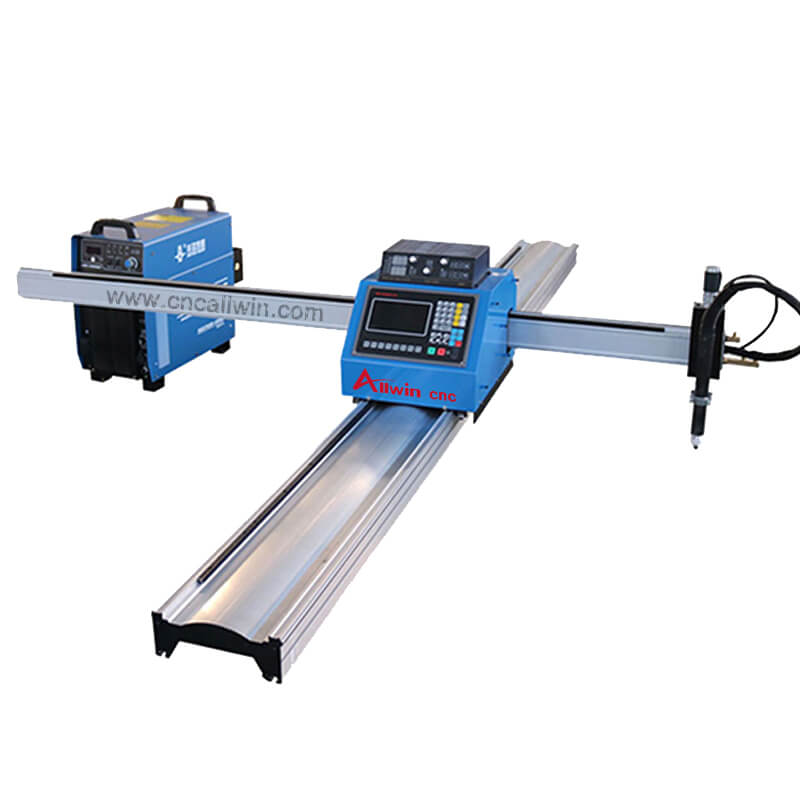

2021 Best plasma Cutting Machines Affordable plasma Cutters for Sale

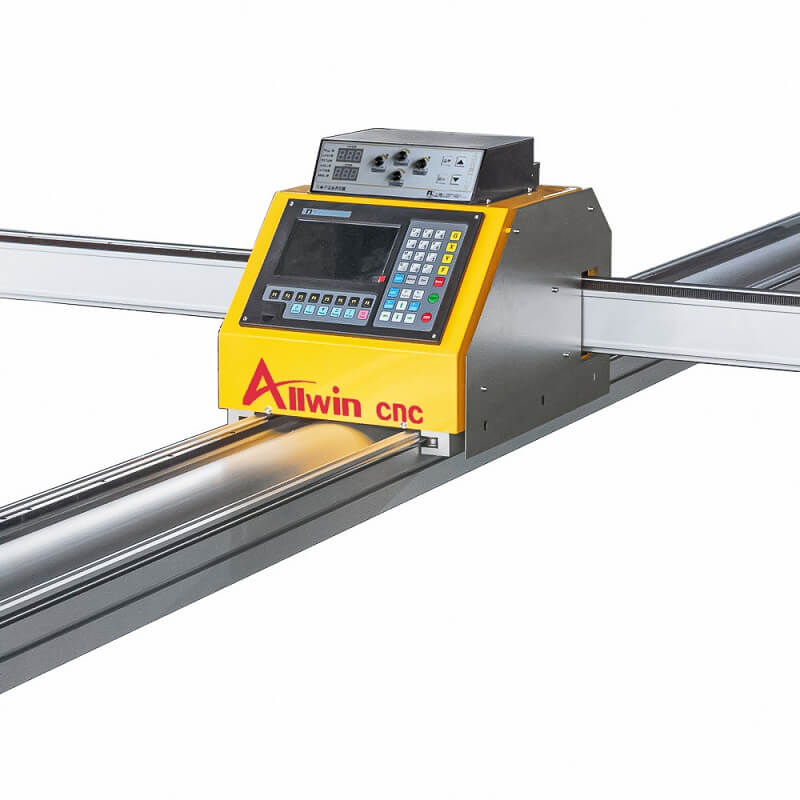

miller plasma cutter

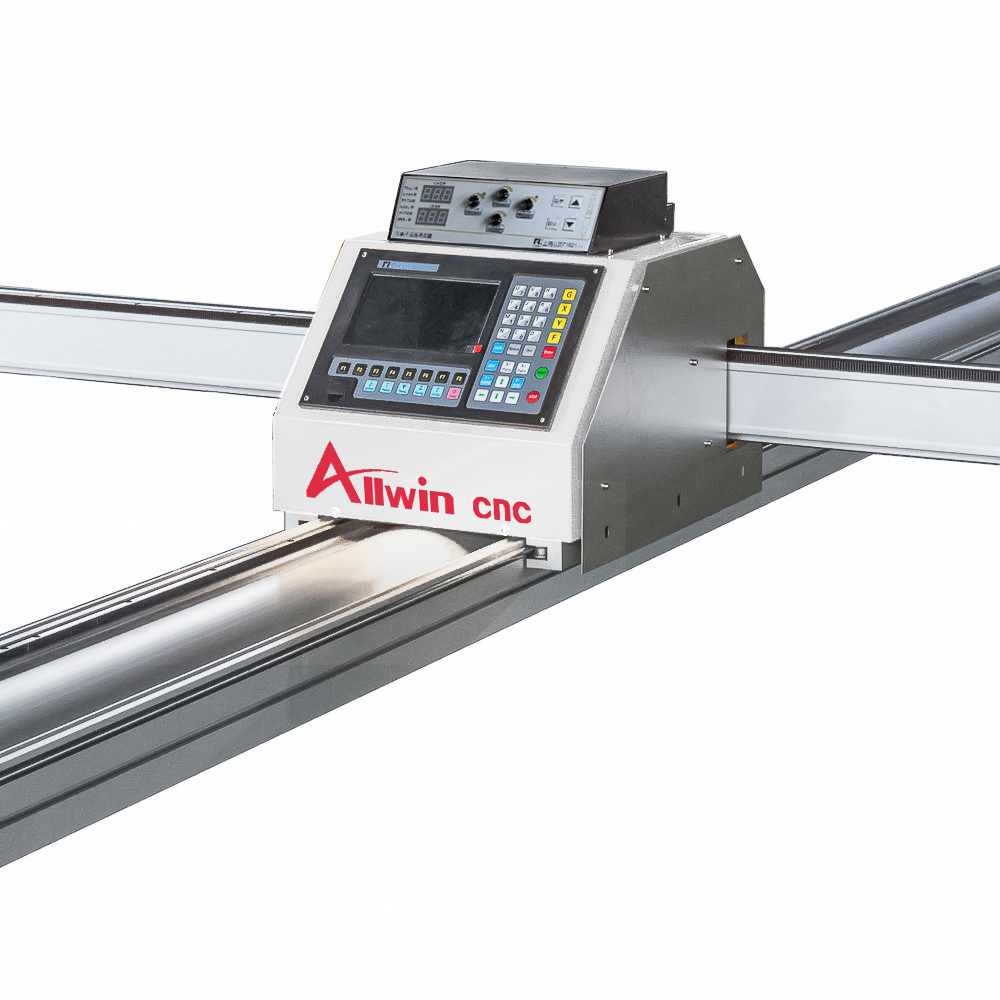

cnc plasma cutter manufactory
2021 Best plasma Cutting Machines Affordable plasma Cutters for Sale
miller plasma cutter
cnc plasma cutter manufactory
Model:1530/1560/1580(Supporting customize service)
Category:CNC Plasma Cutter
Views: 35100
Brand:allwin cnc
Rating: 4.8 /5 based on 61 votes
Standard Price: $1150.00 / Set
Price Range: $1230.00 to $20000.00 / Set According to Configurations
Supply Ability: 150 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd
Payment Terms: T/T,L/C,Western union,Paypal

The standard mini portable plasma cutter machine is an entry-level cutting machine

it is an affordable CNC portable  plasma cutter with flame oxygen torch together

The cnc machine frame adopts aluminum alloy structure, which is light in weight and easy to carry.

It can also be fixed on a self-made bracket. allwin cnc plasma cutter can cut metal, carbon steel, stainless steel, copper, aluminum and other metal products. The machine runs stably and the effect is good. It can meet the needs of most small businessmen in metal cutting and welding, as well as companies that process metal products such as ships, automobiles, and chemicals; this machine has a very high cost performance and is the most popular cutting machine in 2021.

Parameter for mini portable plasma cutter
Model1530/1560/1580  2030/2060/2080
Size1.5m x3.0m/1.5m*6m/1.5m*8m/2m*8m customized
Plasma PowerUSA Hypertherm Power: 45A, 65A, 85A, 105A, 125A, 200A
Chinese Huayuan Power: 63A, 100A, 120A, 160A, 200A
Cutting Thickness0.3-50mm (According to different plasma power)
Cutting DiameterDepend on cutting thickness
Max Cutting Speed12m/min
TransmissionTaiwan Hiwin Square rail and Rack transmission
Drive MotorLeadshine stepper motor and driver
Control SystemFANG LING FL2300B control system with THC automatic
TableBlade table or Sawtooth table
Machine StructureAluminum Alloy Structure
Working voltage220V for machine, 380V for power supply
Optional PartsRotary device, Flame head
Consumable PartsCutting nozzle and electrode

Mini portable cnc Plasma cutter Details

why choose Mini portable cnc plasma cutting machine

Plasma generator

Allwin plasma cutter 01

Control System

control system

Plasma/flame torch

plasma torch

pop sales portable plasma Cutters for Sale at good price

Allwin portable plasma cutting machine is a CNC metal cutting machine. It adopts aluminum alloy structure, which is light and easy to carry.

The size of this CNC metal machine frequently required by customers is 1500*3000, 1500*6000, and 1500*8000, and we can also provide machines of other sizes according to customer requirements.

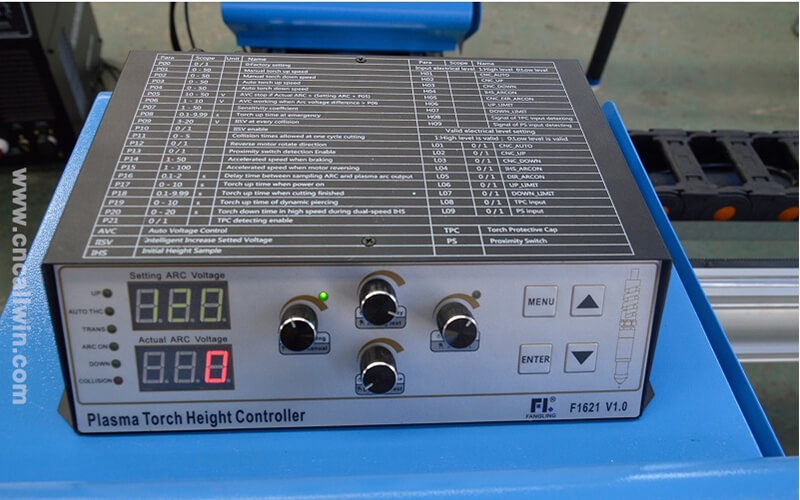

This mini portable cnc plasma cutting machine”s constructure is aluminum frame with THC height controller 1621,Fangling FL2100B touch screen with emergency stops when it leaves the factory, and it can be fixed on a self-made metal frame at the customer’s site.

According to statistics, this metal cutting machine has become the best-selling metal cutting equipment in 2021. This Mini portable CNC plasma cutting machine is widely used in schools, small business companies, shipyards, automobile production industry, motorcycle production industry, advertising decoration industry and other industries involving metal cutting.

Its main advantages are as follows:
1. Allwin Portable CNC plasma cutting machine uses aluminum alloy structure, which is light in weight and can be lifted and moved easily by one person.
2. Allwin CNC plasma cutter is simple to operate, stable in operation, and easy to maintain.
3. THC portable plasma cutting machine can be equipped with water-cooled and air-cooled cutting torches. The air-cooled cutting torch is standard, and the water-cooled cutting torch is optional. The water-cooled cutting torch will have better performance in reducing smoke pollution and cutting effects.
4. The portable plasma cutting machine is equipped with the Arc auto adjusting system. During the working process, it can keep the cutting gun and the cutting material at the best cutting distance, and it can also avoid the cutting gun from hitting the material and improve the cutting effect.
5. The plasma power supply we provide has the function of automatically adjusting the current, which can automatically adjust the current according to the thickness of the material to ensure that the material to be cut is smooth and free of burrs.
6. Fangling system comes with a rich graphics library, which provides great convenience for industrial cutting, and it can also read external graphics files from the u disk for cutting;
7. mini portable plasma cutter will come with automatic typesetting software to ensure that the material utilization efficiency is improved during the cutting process and waste is reduced.
8. homemade portable plasma cutting machine can be equipped with automatic pipe cutting device.



Applications for mini portable plasma cutting machine

The Allwin plasma cutting machine can cut various all kinds of metals including cast iron, carbon steel, stainless steel and other non-ferrous metals such as copper and aluminum. It is suitable for metal fabrication industries involving metal cutting such as advertising and decoration industry, shipbuilding, petroleum, automobiles, motorcycles, kitchenware, parts processing, bridge construction, etc.

we also have some other pipeline cutting machine for your option

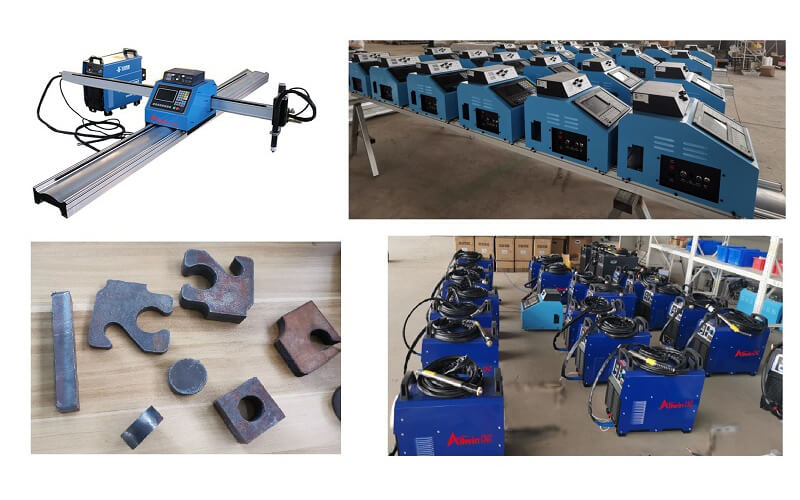

PLASMA CUTTING SAMPLES

China Huayuan Power

Power supplyCutting thickness
63A8mm
100A15mm
120A20mm
160A30mm
200A40mm

USA Hypertherm Power

Power supplyCutting thickness
45A8mm
65A10mm
85A12mm
105A18mm
125A25mm
200A30mm

package and delivery for Mini portable cnc plasma cutter

To avoid damage during the transporation.we  use very proessional packing way to pack our portable plasma cutting machine equipment.one side we try to save packing size,another side we have to consider protecting cnc cutting equipment.Finally We adopt plywood box after high temperature and high pressure..These ploywood don’t need fumigation at destination port.

The boxes meet the inspection standards of the United States and the European Union; the transportation method can be transported by plane, ship, or train according to customer requirements.

How to ship these cnc machinery to oversea?

Our sales team has 15 years trading experience so we have very professional shipping company with strong custom clearance ability at destination. we could guild you step by step from start to purchasing our cnc machinery equipment untill finish custom clearance at destination

All of these portable mini plasma cutting machine can by shiped by air or By fedex, by UPS etc.because of our sales team is professional plus huge export amount  than we have very competitive quotation.

mini portable plasma cutter
