Portable Tube Plasma Cutter

why choose Hypertherm plasma cnc cutting machine

Why choose this portable style plasma cutter?does it cut metal sheet together?

the biggest advantage is that one machine could  cut metal sheet and metal pipe.

it is very easy to remove rotary axis if you want to metal sheet.

Hypertherm plasma generator is designed cutting metal sheet and metal pipe.its one cnc machine with two function.From mini portable metal sheet basic to add rotary axis to cut square metal tube with unique 4th pipe cutting system

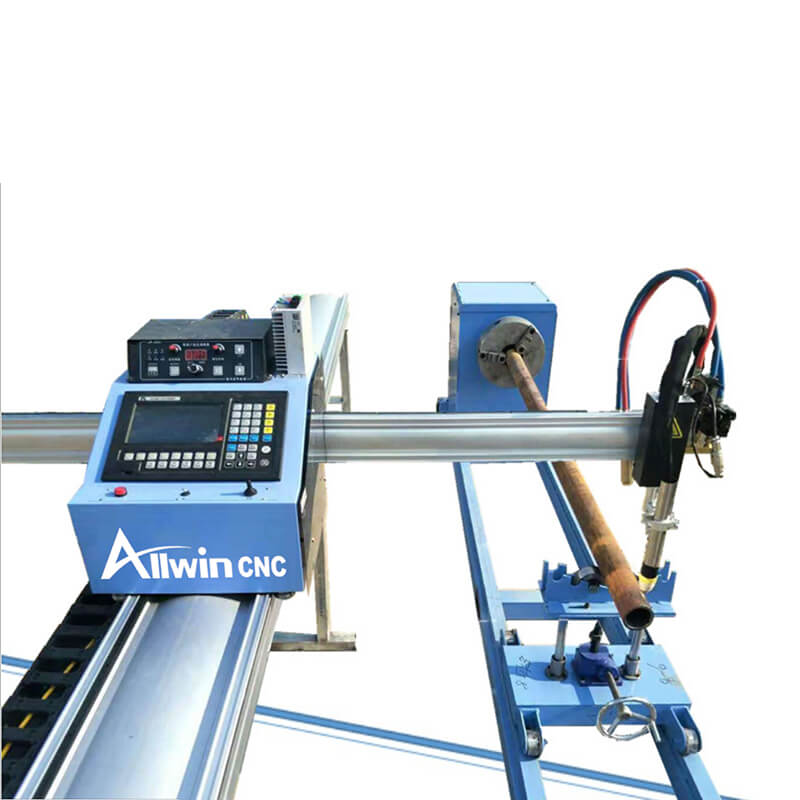

Portable Tube Plasma Cutter b5

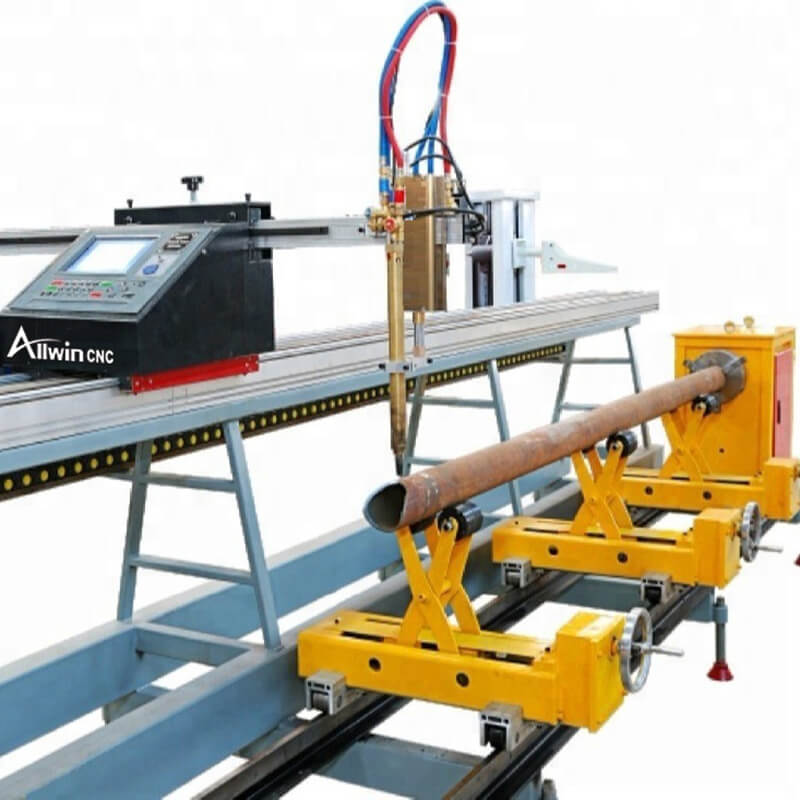

cnc plasma pipe cutter

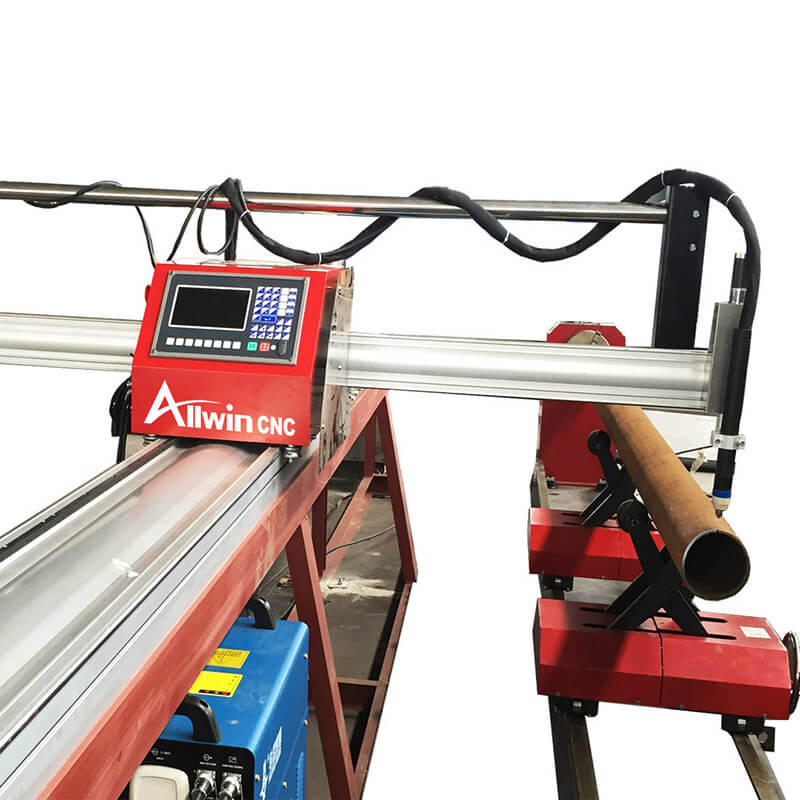

cnc plasma pipe cutting

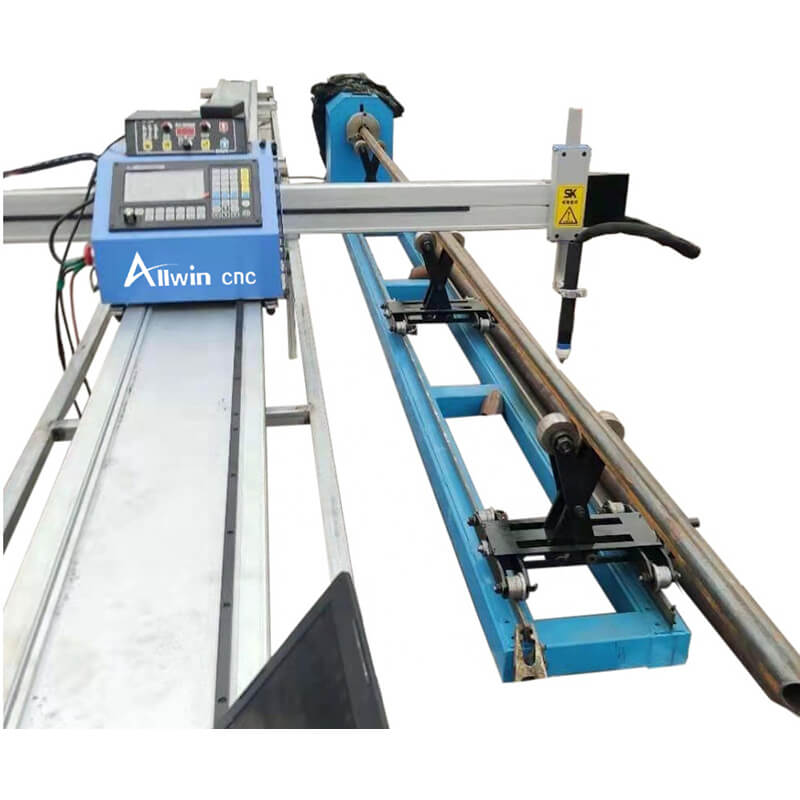

Portable Tube Plasma Cutter b4
Portable Tube Plasma Cutter b5
cnc plasma pipe cutter
cnc plasma pipe cutting
Portable Tube Plasma Cutter b4
Overview
Model:AP3 CNC plasma tube cutter
Category:CNC Plasma tube cutting machine
Views: 24950
Brand:allwin cnc
Rating: 4.8 /5 based on 61 votes
 Price:$3400.00 / Set
cutting modemetal sheet and round pipe
Supply Ability: 10 Sets / Month In stock! From – Jinan allwin cnc machinery co.,ltd
customizedsupporting
How does portable plasma metal sheet and metal plate works?

The portable plasma pipe cutting machine is a cnc plasma machine, which is equipped with tube cutting equipment and cnc system on the basis of the portable plasma machine.

Therefore, the two arm parts of the portable plasma pipe cutter that carry the x-axis and the y-axis are also made of aluminum alloy, which is light in weight and convenient to move. and also,

the portable pipe cutting machine can not only cut pipes, but also cut metal plates, which can maximize the value of the portable cnc plasma machine. For small business companies, this plasma equipment is attractive enough.

here blow vidoes to show how does it shift from pipe metal cutting mode to metal plate cutting mode

Parameter techinical details for portable tube cutter

Model portable style AP3 CNC plasma tube cutter
cutting size for  sheet metal sheet size 1500mm*3000mm or customized by customer
Plasma Power USA Hypertherm Power: 45A, 65A, 85A, 105A, 125A, 200AChinese Huayuan Power: 63A, 100A, 120A, 160A, 200A
Cutting size for pipe pipe long 6m 9m 12m( customized )
Cutting method Flame/plasma
metal pipe diameter Chuck 350mm
control system BEIJING STARTFIRE OR SHANGHAI FANGLING 4TH AXIS
Control system Advantech industrial computer
Plasma hole thickness 20mm
Plasma edge  thickness 30mm
Pipe diameter  40mm-350mm
file transfer USB
Working pressure of compressed gas  0.5Mpa
Required gas flow of plasma 4500L/H
Working environment Ventilation, no concussion
working area Customized supported
Types of gas Acetylene propane
Transmission Taiwan Hiwin Square rail and Rack transmission
Drive Motor Leadshine stepper motor and driver
Working voltage 220V for machine, 380V for power supply (63A with 220V i
Optional Parts Rotary device, Flame head, Drilling head, Marking head, A
Consumable Parts Cutting nozzle and electrode

1.Customer need build shelf by themselves according to our guidance. 2.fine plasma torch cuts clean

3.working size is customized by customer request 4.Strong with bigger motor from rotary axis.

subejcts for portable tube plasma cutter

Allwin CNC plasma tube cutter is widely used in the cutting and processing of pipeline structural parts in water pipe manufacturing, chemical industry, shipbuilding, petroleum and other industries;

subjects plasma cutter

cutting thickness of plasma source

China Huayuan Power

Power supplyCutting thickness
63A8mm
100A15mm
120A20mm
160A30mm
200A40mm

USA Hypertherm Power

Power supplyCutting thickness
45A8mm
65A10mm
85A12mm
105A18mm
125A25mm
200A30mm

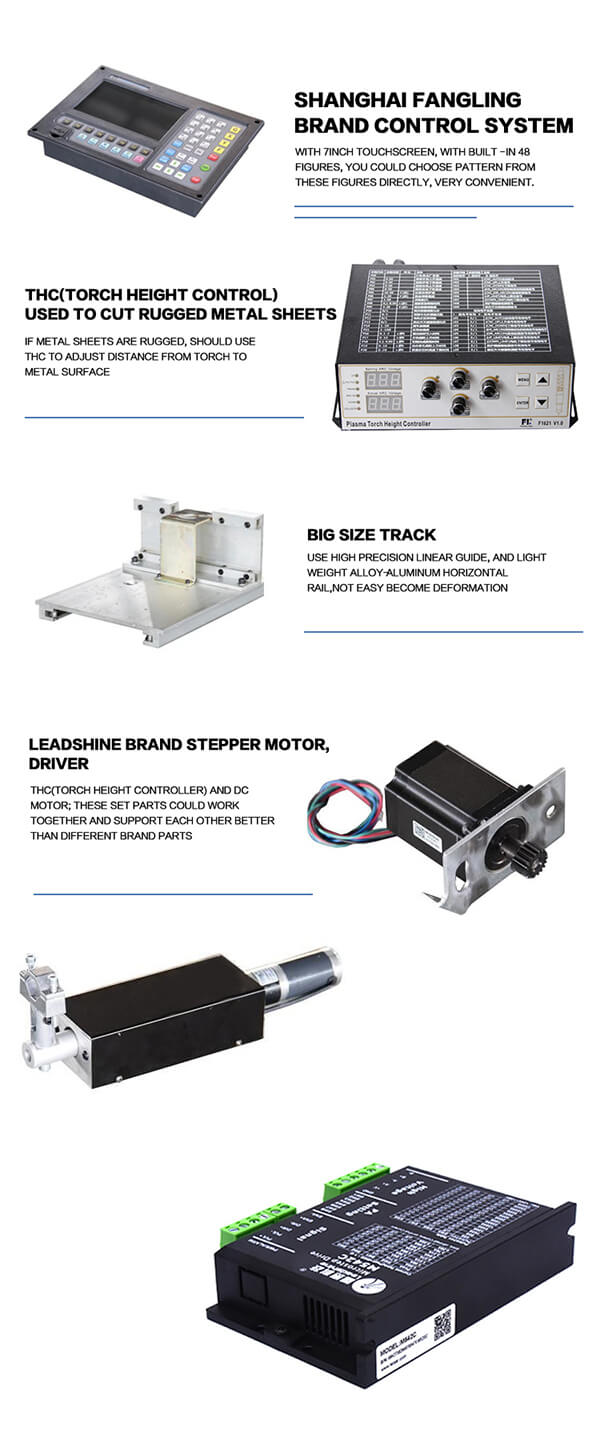

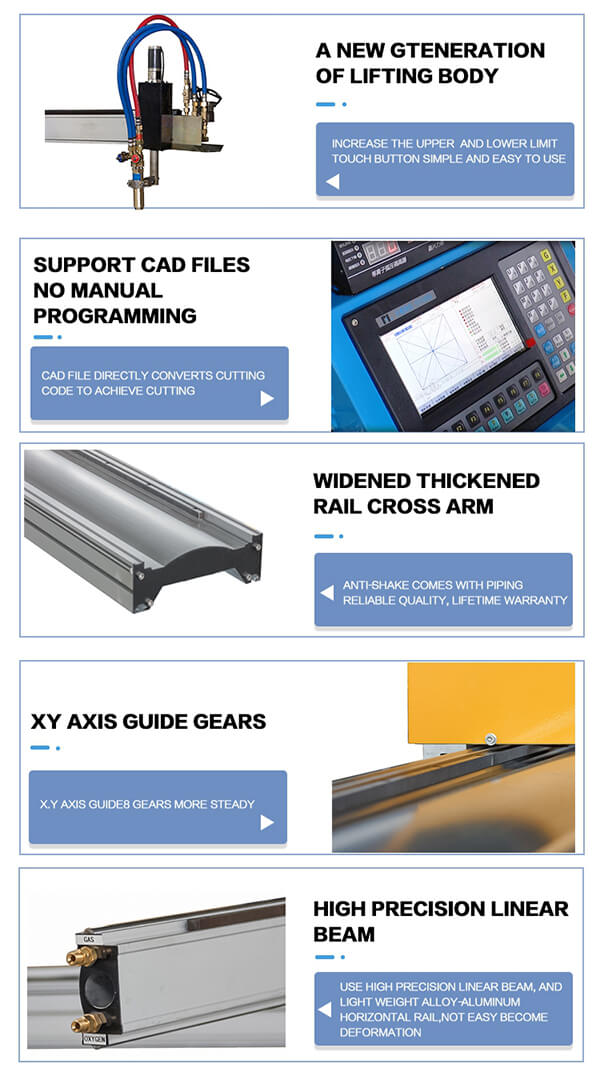

details for Metal pipe plasma cutting machine

how portable tube plasma cutter works??

CNC Portable plasma pipe cutting machine, can cut pipes including round pipes, square pipes, etc.

this cnc plasma cutting machine can cut thin pipes as well as thick pipes.

 Because the portable tube plasma cuter is light in weight, the metal frame supporting the plasma cutting equipment can be welded by itself according to the site conditions, ensuring that the metal cutting cnc machinery can be used in a variety of application scenarios.

this metal tube plasma cutting machine can be used to cut metal pipes, as well as carbon steel, stainless steel and other metal materials. The CNC steel pipe cutting machine adopts a CNC system to realize automatic calculation and cutting of metal pipes. this pipe cutter can cut round, square, v-shaped grooves and other shapes on the pipe; the operation is very simple, the production efficiency is high, and the cut is smooth , Stable performance, this plasma cutter is widely used in the cutting and processing of metal structural parts in water pipe manufacturing, chemical industry, shipbuilding, petroleum and other industries; Due to the fast cutting speed, smooth cutting surface, automatic operation and other excellent properties of the pipe cutting machine, this pipe cutter has won praise from customers.

The main advantages of the portable CNC plasma pipe cutting machine:
1. The portable CNC portable tube plasma cutter is easy to operate. You only need to set the parameters and select the shape to be cut, and the cutting of each mouth shape of the entire pipe can be automatically completed. Greatly improve the cutting efficiency .
2. The Allwin portable CNC plasma pipe cutting machine is widely application. this mini portable cnc machinery can not only cut pipes, but also cut metal sheets. this plasma tube cutter can be used for multiple purposes in one machine and reduce the purchase cost of enterprises. Therefore, this plasma equipment is useful for small businesses and DIY enthusiasts or other household applications.
3. This plasma pipe cutting machine can be modified by itself to adapt to multiple application scenarios. Due to the light weight and strong portability of the machine, it is completely possible to design and weld different metal frames according to the actual situation to meet the needs of various application scenarios.
4. The operation is simple, as long as there is a cutting pattern, it can be cut at will without restriction.
5. Simple structure and easy maintenance. As long as the air pressure and voltage are normal, no other maintenance is required under normal circumstances. Greatly reduce the maintenance cost of the machine.
6. Support multiple voltages. The supported voltages are 110v, 220v, 380v

package and delivery for portable metal tube cnc plasma cutter

mini portable plasma cutter

International Shipping Around the World

All of our cutting machines can be sent to all parts of the world by sea, air, international expFEDEX, UPS, etc. You are welcome to feedback your needs and we can provide you with the most timely and accurate freight quotation, as well as the most timely and reliable service.
